1000W - 100W flexible solar panel solar Power IP68 sealing level, suitable for roofs, motor home, balconies, Yacht Boat etc
1000W - 100W flexible solar panel solar Power IP68 sealing level, suitable for roofs, motor home, balconies, Yacht Boat etc
SPECIFICATIONS
Brand Name: WUZECK
Certification: CE,FCC,RoHS,weee
Flexible Solar Panel: Yes
Foldable Solar Panel: No
High-concerned chemical: None
Material: Monocrystalline Silicon
Max. Power: 100W -1000W
Max. power current Imp(A): 6.06A
Max. power voltage Vmp(V): 16.5V
Model Number: Solar Panel Module
Module Efficien: 24%
Nominal Capacity: 100 Watt - 1000 Watt
Number of Cells: 30 solar cell
Number of Panels: 1
Open circuit voltage Voc(V): 19.8V
Origin:
Short circuit current Isc(A): 6.36A
Size: 1140*460*2.5mm
Type: Solar Panel
is_customized: Yes
Solar Panel Power : 100W / 200W / 300W / 400W /500W /600W /1000W
[High Efficiency]PERC technology monocrystalline solar cell.WUZECK solar panel provides high conversion efficiency up to 23%,
[Ultra-thin and ultra-lightweight design] Flexible solar panels are lightweight and portable, weighing 3.96lb and 0.11inch thick.Solar panels are easy to transport, install, hang and remove.

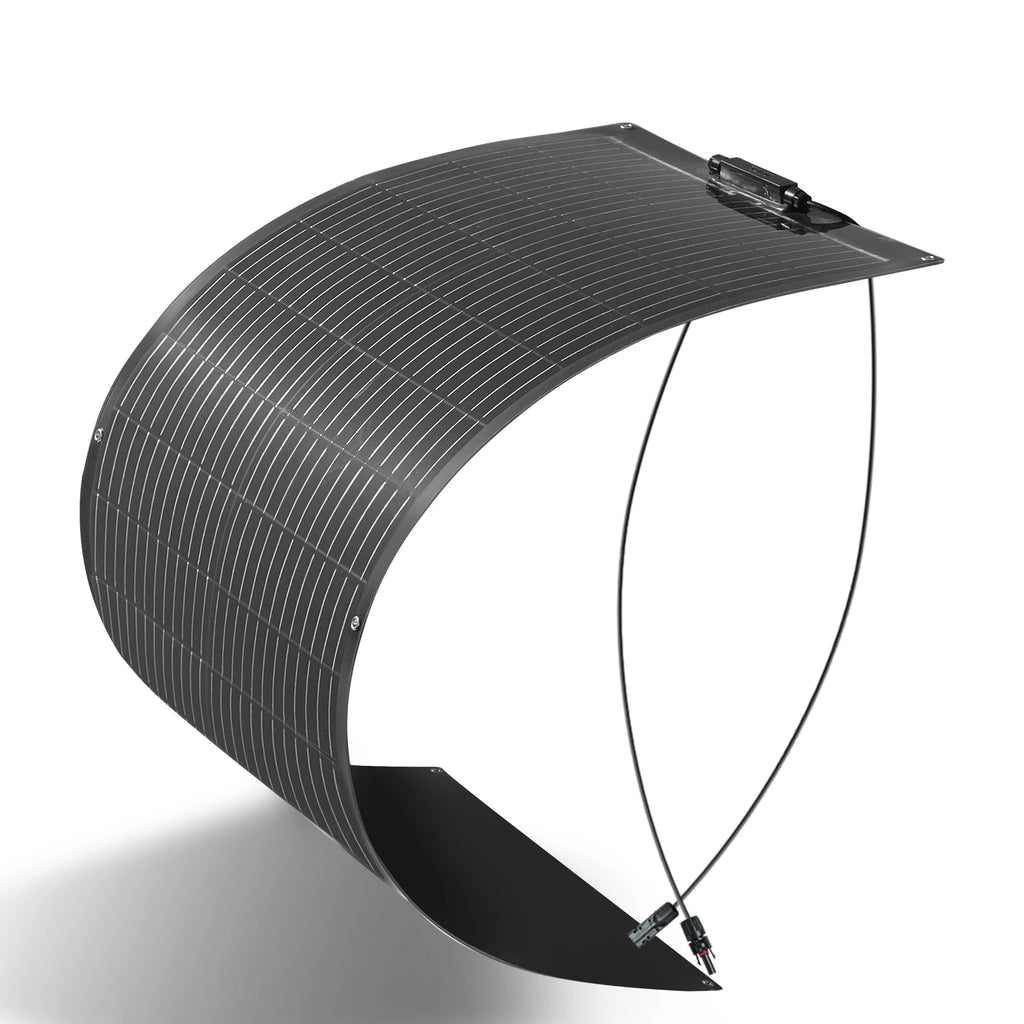

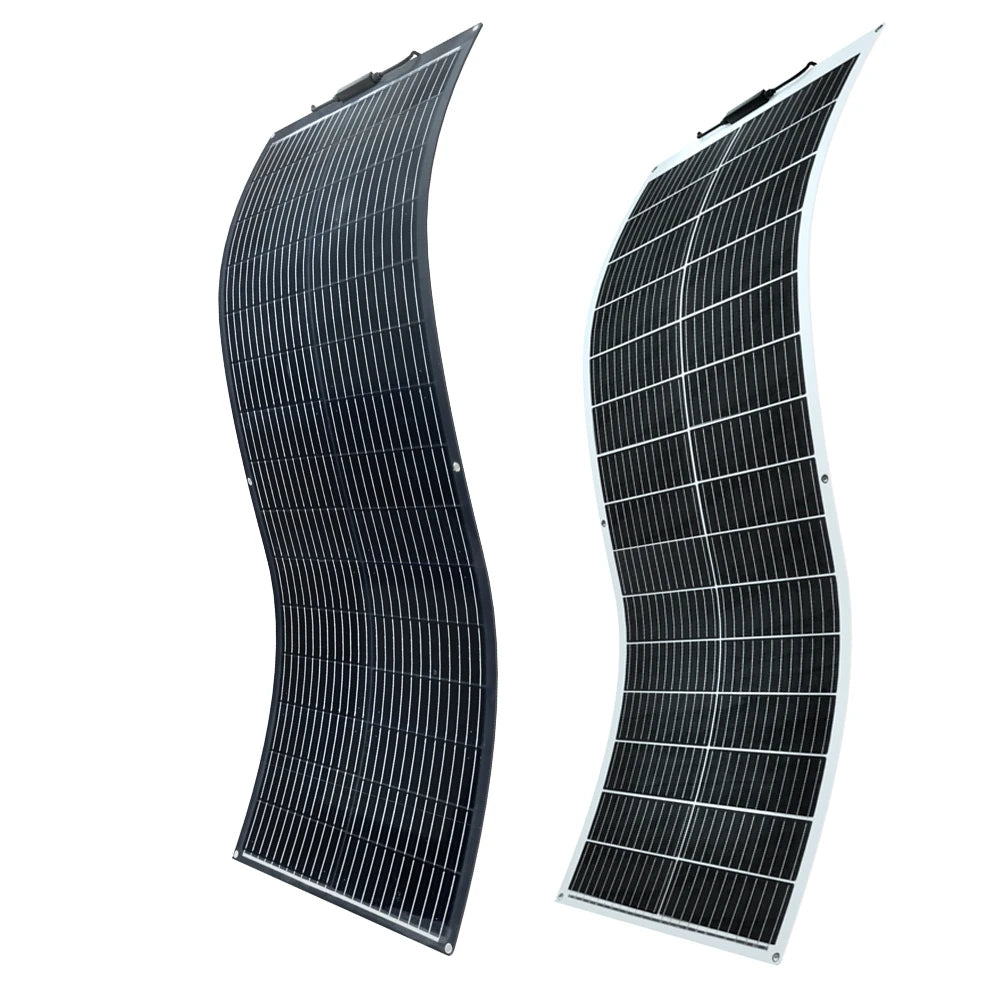

[Bendable and versatile ] Flexible solar panels are bendable and can be shaped to fit a variety of surfaces, This makes them a great choice for use on boats, RVs, trailers,and other vehicles.
[Easy to install] Flexible solar panels are easy to install and can be mounted using a variety of methods, including adhesive backing, grommets, and tie-downs. This makes them a great choice for DIY enthusiasts who want to install own solar panels.
[Compatible with for a variety of batteries] Lead-acid battery (Sealed, Gel, Flooded) and Lithium battery (LiCoMnNiO2, LiFePO4),Multiple protection functions can better protect the battery.
Product Description
16.5V 100W Flexible solar panel Specification
Maximum power(Pmax) 100 Watt
Maximum system voltage 700V DC
Open circuit voltage(Voc) 19.8V
Short circuit current(Isc) 6.66A
Maximum power voltage(Vmp) 16.5V
Maximum power current(Imp) 6.06A
Weight 1.8kg/4.0lb

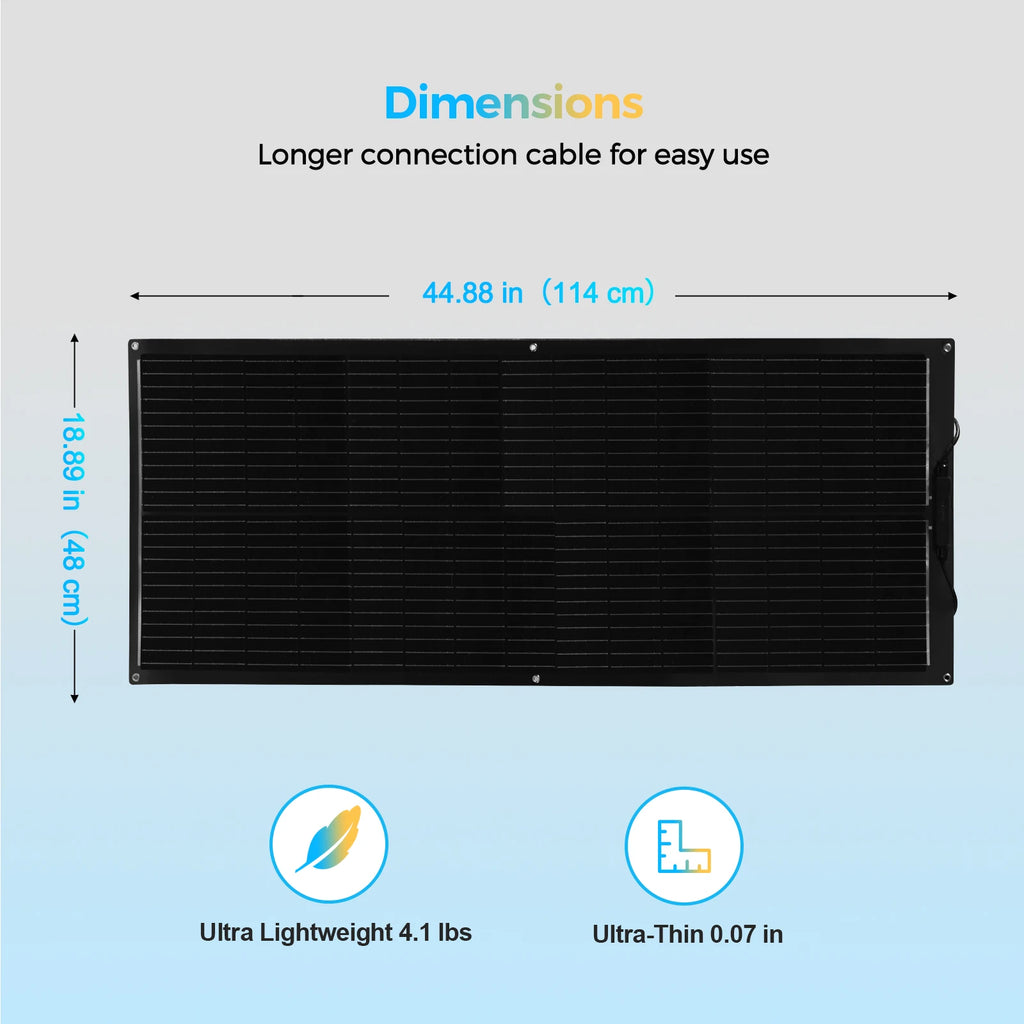

Size 1140X460X2.5mm / 44.88X18.11X0.098 inch
Cable length 90cm/10FT
Operating Temperature -45℃ to 80℃ /-49℉ to 176℉
Operating temperature(NOCT) 45 plus or minus 2 Celsius system
STC: lrradiance1000w/m2,Temperature 25 Celsius system, AM=1.5
Please note: If you test the solar panel, the solar panel must be tested under the sun. The solar panel is exposed to sunlight at different times and the temperature is different, which will affect the output power of the solar panel.
1 Years Warranty, 8-10 Year Lifetime
Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.
Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point.
OR
PERC technology monocrystalline cells with conversion rate up to 23%.
Water resistance

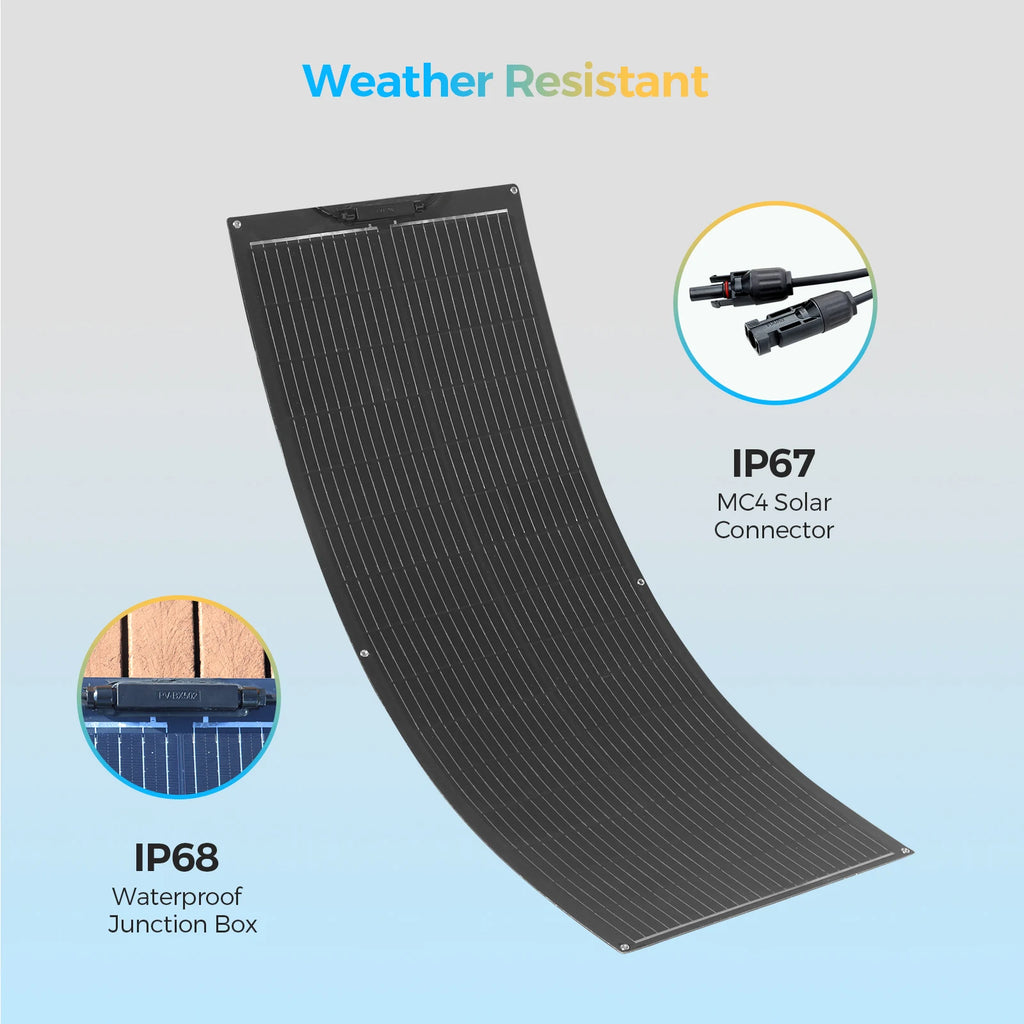

Waterproof IP67 junction box and PV connector，Ideal for outdoor environment.
2 Boat
3RVs/Trailer
[Highly efficient]The solar panel uses high efficiency 210MM monocrystalline solar cells with a conversion efficiency of 23%-24%. Built-in bypass diode to better protect the solar panel.

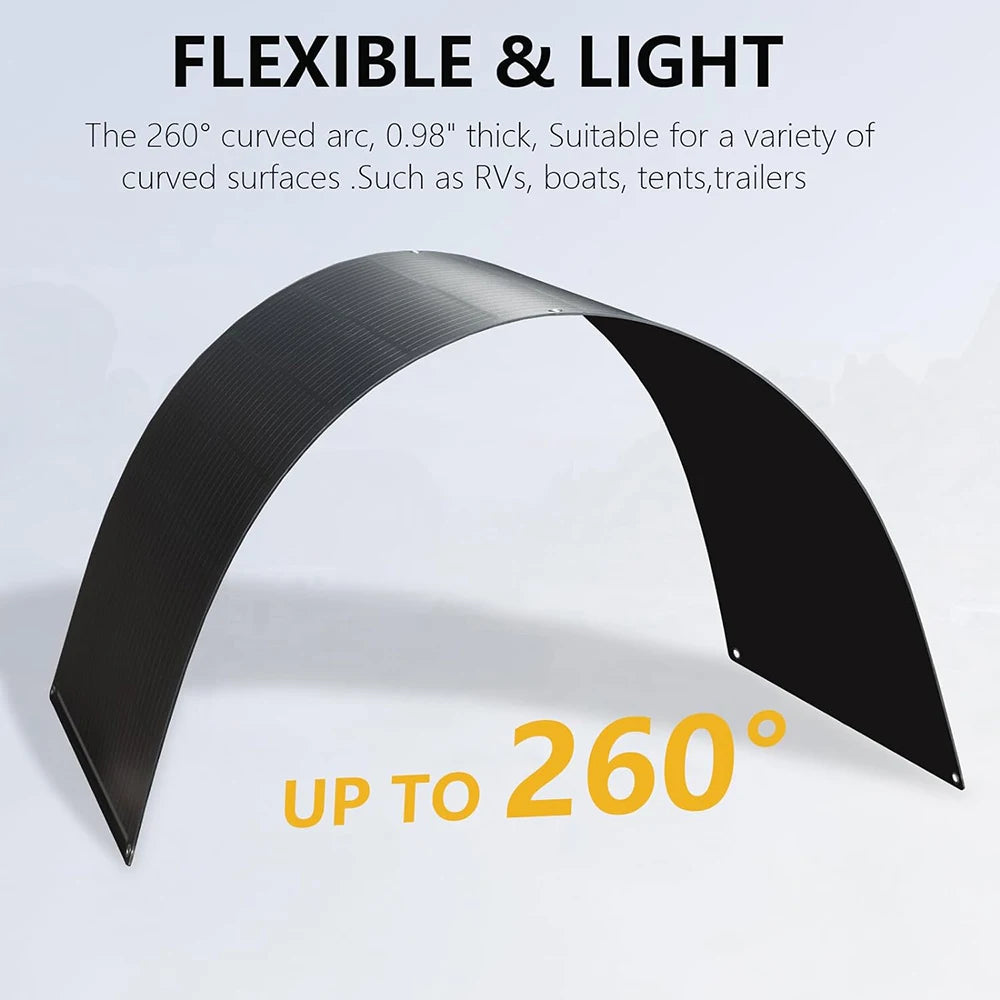

[Ultra-light and Flexible] A single solar panel weighs only 4.0 pounds and is only 0.098 inch thick. It can be easily picked up and carried. The solar panel be bent up to 260°. Ideal for mounting on RV ,roofs, campers, trailers, boats, cabins, tents, and other uneven surfaces.
[Highly Durable] The solar panels come with an IP67 waterproof rating .Withstand heavy snow loads of up to 5400 Pa and high wind loads of up to 2400 Pa,suitable for outdoor weather.
[Functional] Solar panels are connected to a 12V-48V system depending on the battery, perfect solution for power supply. which can effectively deal with the difficult problems caused by power shortage and power outage.
Package
Package :100W solar panel : 1 pcs 16.5V 100 Watt solar panel
Package :200W solar panel : 2 pcs 16.5V 100 Watt solar panel
Package :300W solar panel : 3 pcs 16.5V 100 Watt solar panel

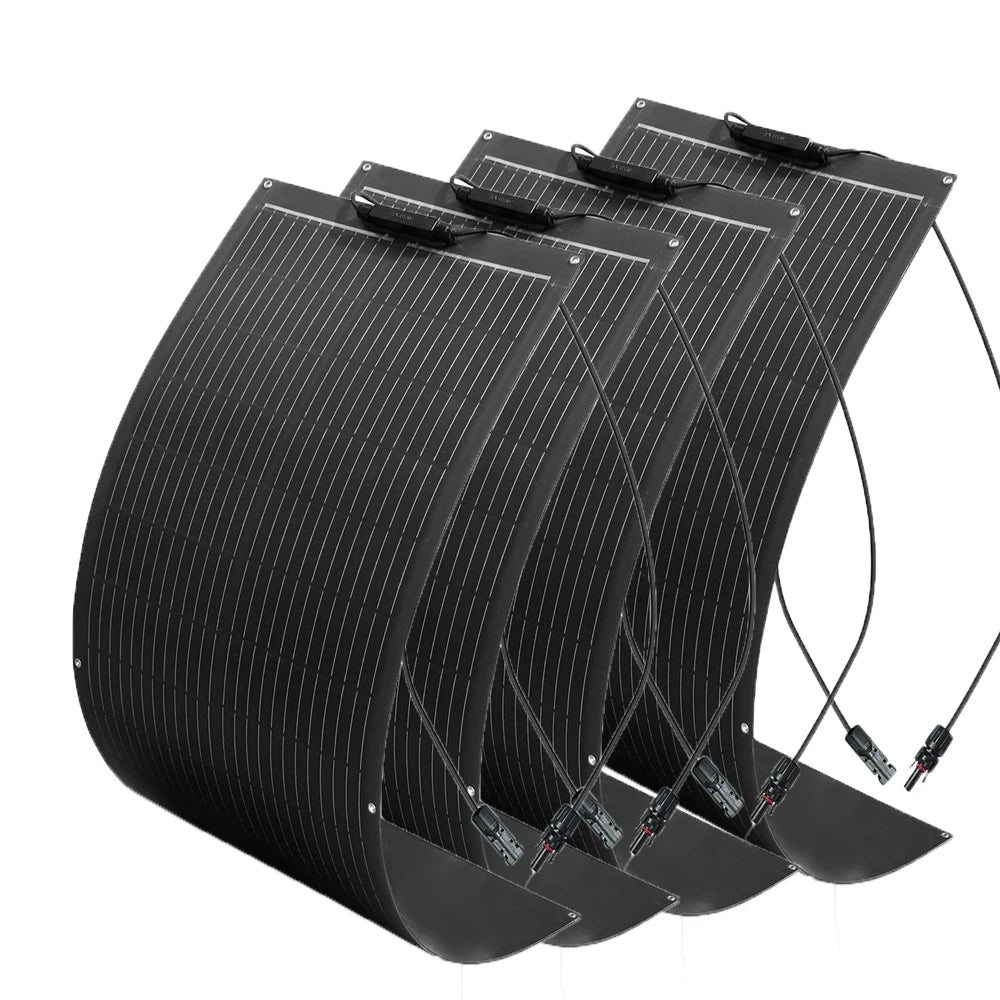

Package :400W solar panel : 4 pcs 16.5V 100 Watt solar panels
Package :500W solar panel : 5 pcs 16.5V 100 Watt solar panels
Package :600W solar panel : 6 pcs 16.5V 100 Watt solar panel
Package :1000W solar panel : 10 pcs 16.5V 100 Watt solar panel
Safety Instructions:
1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
2.The battery cable should be as short as possible to minimize loss.
3.The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL,lithium ions batteries).
4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.
System Connection:
1.Connect the battery to the charge regulator - plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
SOLAR HOME SYSTEM
• Small DC systems
• Telemetry use
• Home use
• Holiday houses
• Garage lighting
• Recreational use
• Lighting of streets in regions without
reliable grid
• Billboard lighting
• Sports field lighting
• Parking space lighting
• AC and DC loads possible
• Home use
• Industrial use
HYBRID SYSTEM
• PV and wind turbine or diesel generator
• DC and AC loads possible
• High reliability
• Small hydro generators
• Recreational use
• Caravan and camping
OFF-GRID CONNECT
• Covering self consumption
• Grid is used as back-up
• Reduces energy cost
