SPECIFICATIONS

Battery Type: Lithium-ion battery/lead-acid battery/User-defined

Battery Voltage range: 40~60Vdc

Brand: solarcore

Brand Name: NONE

Bypass Overload Current: 63A

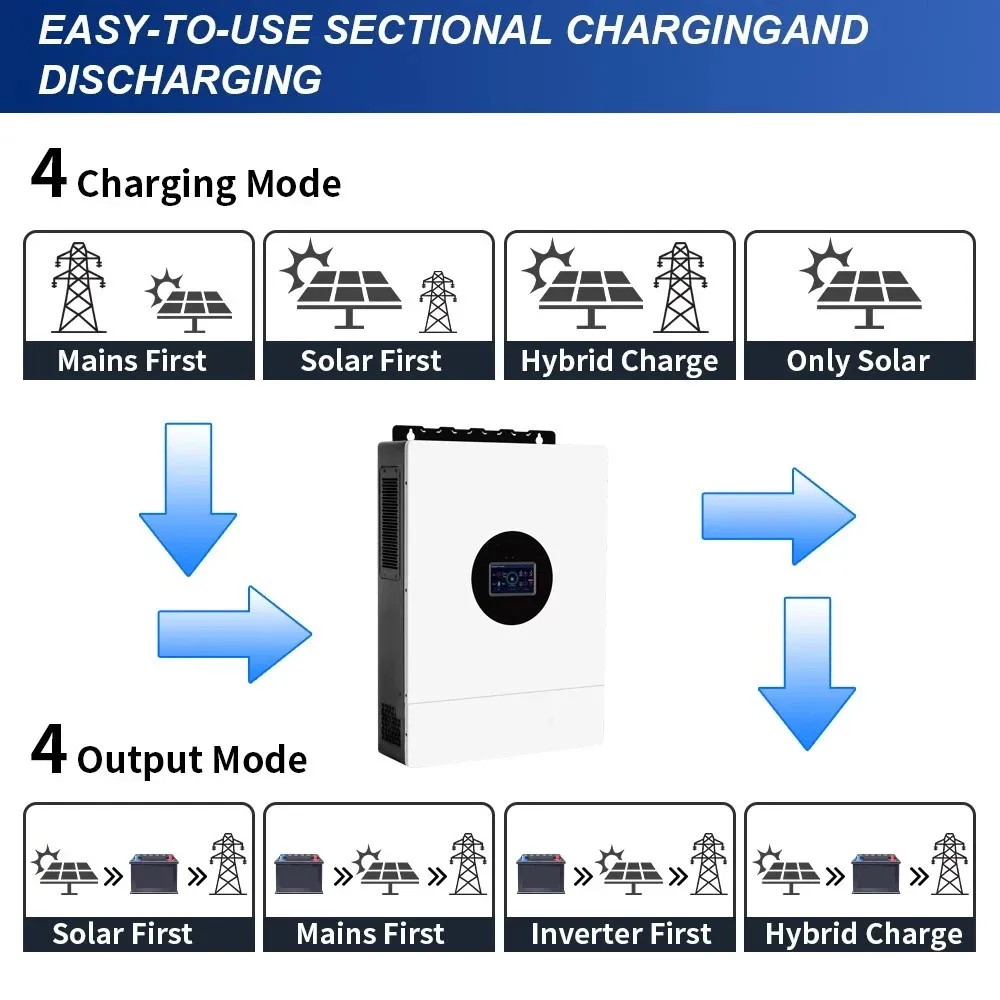

Charging Mode: MPPT (Maximum Power Point Tracking)

Connector Type: MC4

Current Output: 200A

Current Type: AC/DC

High-concerned chemical: None

Input Frequency Range: 50/60Hz

Input voltage range: 90~140Vac

Inverter Technology: Hybrid

MPN: Does not apply

MPPT Tracks Efficiency: 99.9%

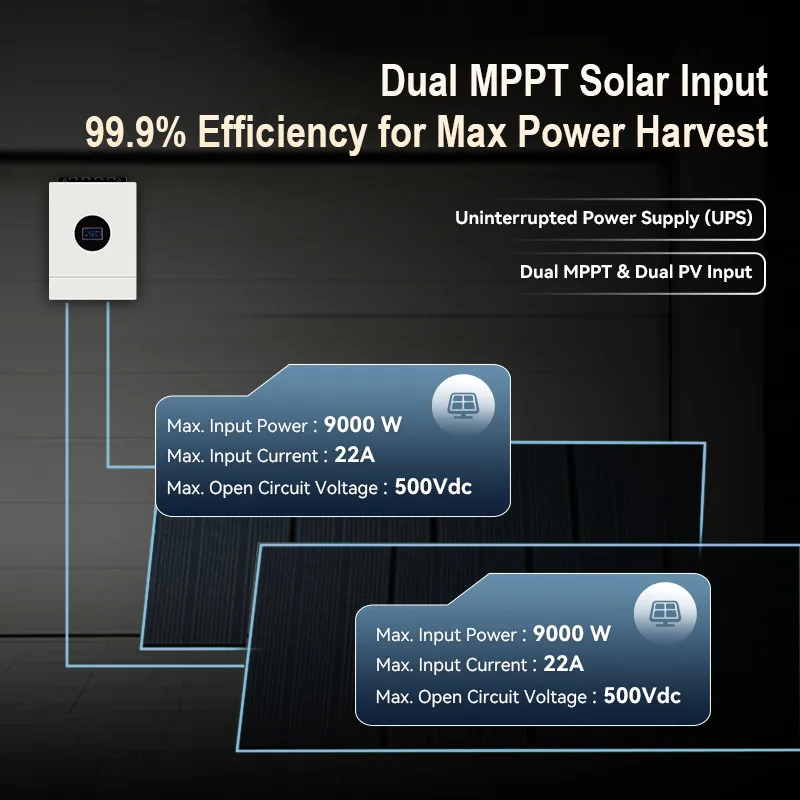

MPPT channel number: 2

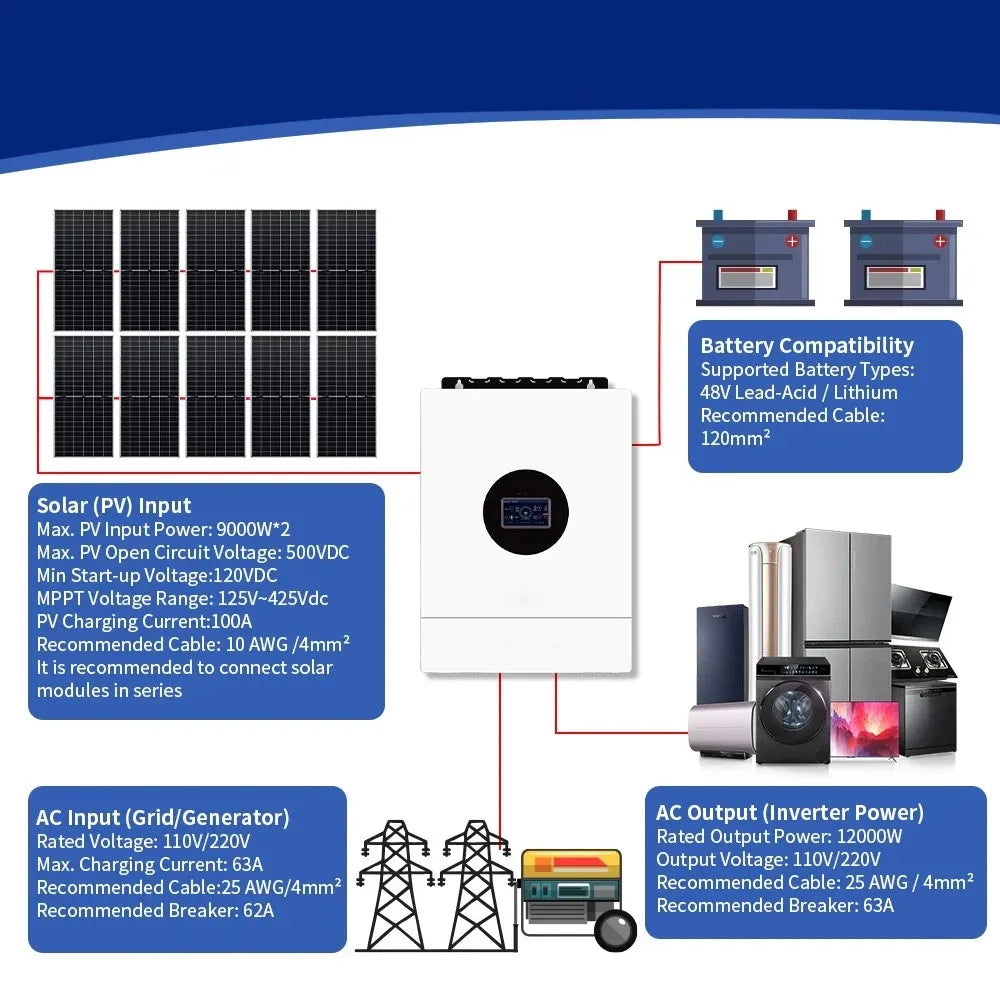

MPPT operating voltage range: 125~425Vdc

Max. Input Current: 22A+22A

Max. input power: 18000W

Max. open circuit voltage: 500 Vdc

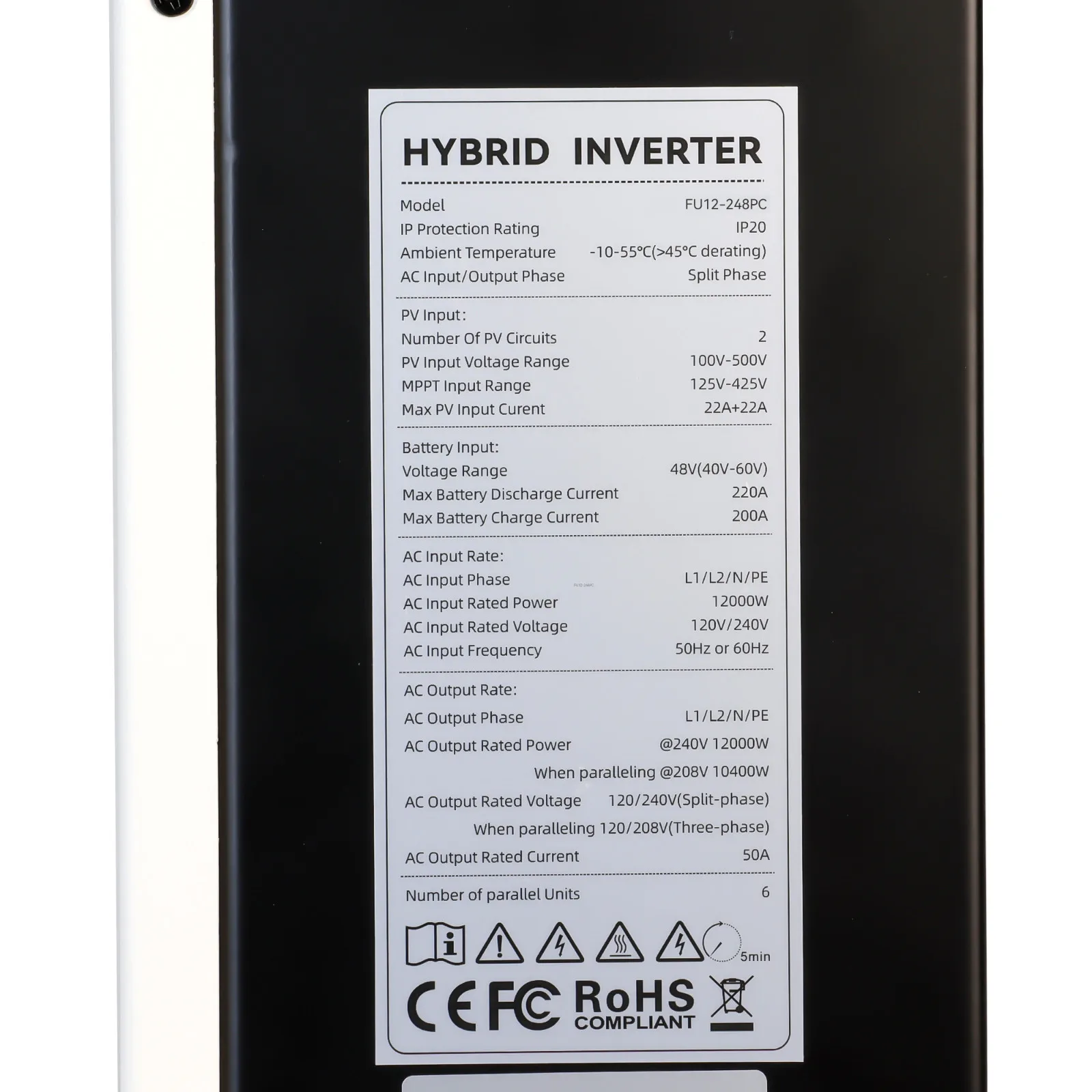

Model: FU12-248PC

On-load Motor Capability: 6HP

Origin:

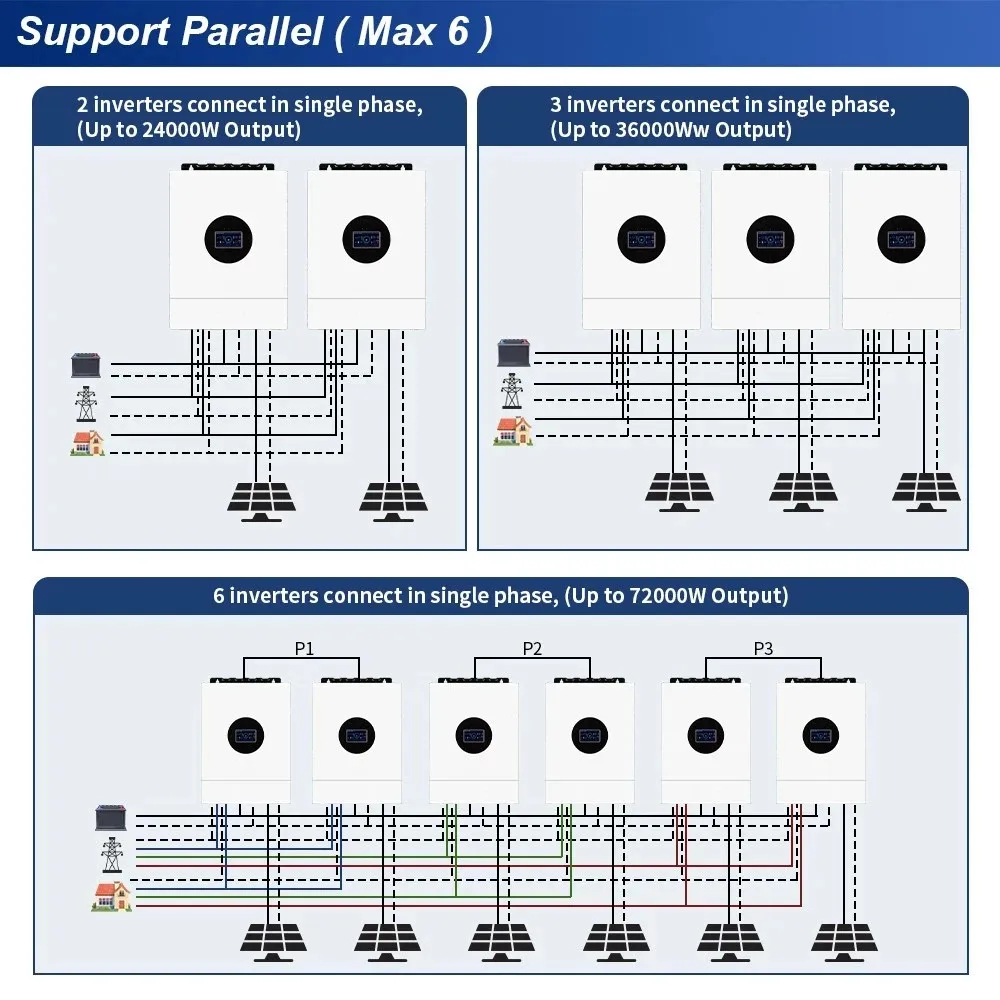

Parallel: 6

Power: Greater Than 2000 W

Power Source: Solar

Product Line: Solar Inverter

Rated battery voltage: 48v

Rated output powe: 12000W

Recommended Environment: Indoor

Size: 450*620*142mm(17.72*24.41*5.6in)

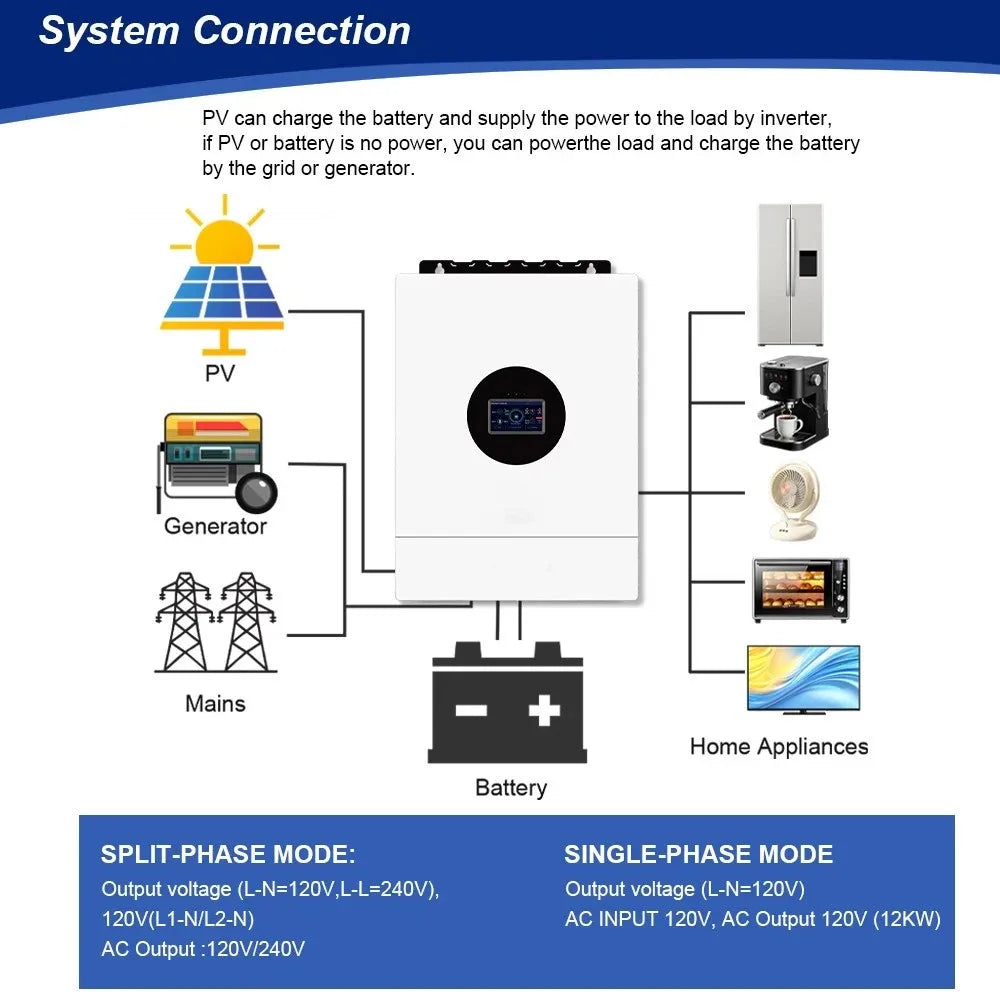

System Configuration: Off-Grid

Type: Charger/Inverter

UPC: Does not apply

Warranty: 3

Weight: 23.5kg(51.81lb)
