SPECIFICATIONS

Brand Name: NONE

Hign-concerned Chemical: None

Origin:

Application

It is suitable for cutting materials with a thickness within 3/5'' and width within 0.39-23.6'', such as wall tiles, groove tiles, raised tiles, patterned tiles, flat tiles, solid tiles, glazed tiles, polished tiles, glass tiles, and many other mainstream tiles. It can be used in multiple workshops and industrial sites.

How to Use

1. Fixed Position: Hold the handle with one hand, pull the slide back to the seat, and place the ceramic tile flat on the base plate (if necessary, extend the ruler to measure). Align the cutting line of the ceramic tile with the center support plate, and the front end of the ceramic tile should be close to the notch of the base plate.

2. Score and Press Down: Lower the handle and make the cutting wheel contact with the surface of the ceramic tile. Push the handle forward lightly to cut a continuous, even straight line on the ceramic tile.

3. Break-off: Lift the handle slightly backward, allowing the pressure block to fall smoothly onto the front end of the ceramic tile. Apply appropriate force to push the handle down, and the ceramic tile will break along the scoring line.

Specification

Product Model: 800F

Cutting Wheel Model: YG96

Color: Blue

Cutting Wheel Material: Tungsten Alloy

Handle&Bearing Material: Aluminium Alloy

Base Material: Aluminium Alloy, Sponge

Slide Rail Material: Alloy Steel

Slide Rail Surface Treatment: Hardening Process, Electroplating Process

Operating Method: Manual

Guide Rail: Dual Track

Special Function: Infrared Positioning

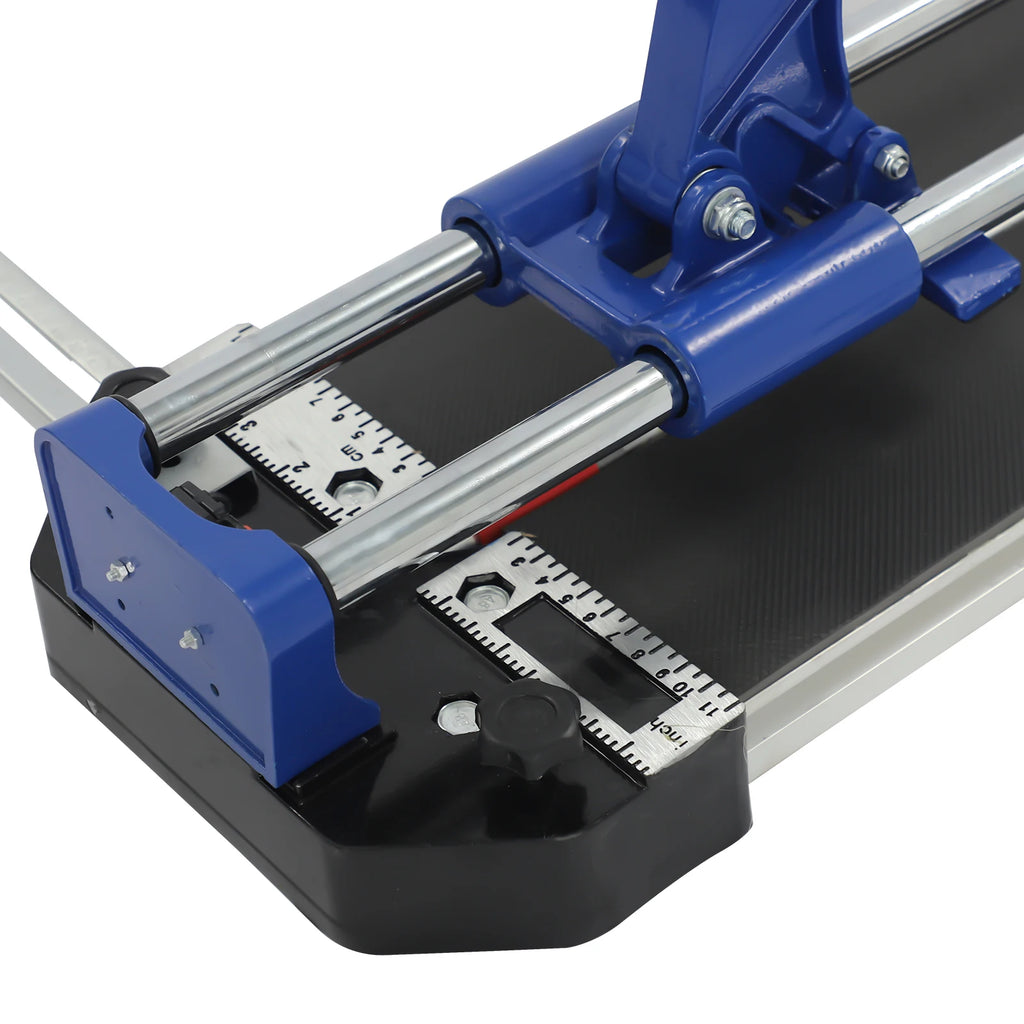

Balancing Brackets&Ruler Bar Adjustable Angle Range: 0-90°

Battery Type: 2* AAA (Included)

Slide Rail Diameter: 20mm/0.78in

Base Plate Thickness: 1.2mm/0.04in

Maximum Cutting Width: 60cm/23.6in

Minimum Cutting Width: 1cm/0.39inch

Maximum Cutting Thickness: 15mm (3/5inch)

Gross Weight: 8kg/17lbs

Package Size: 82*25*18cm/32*9*7inch

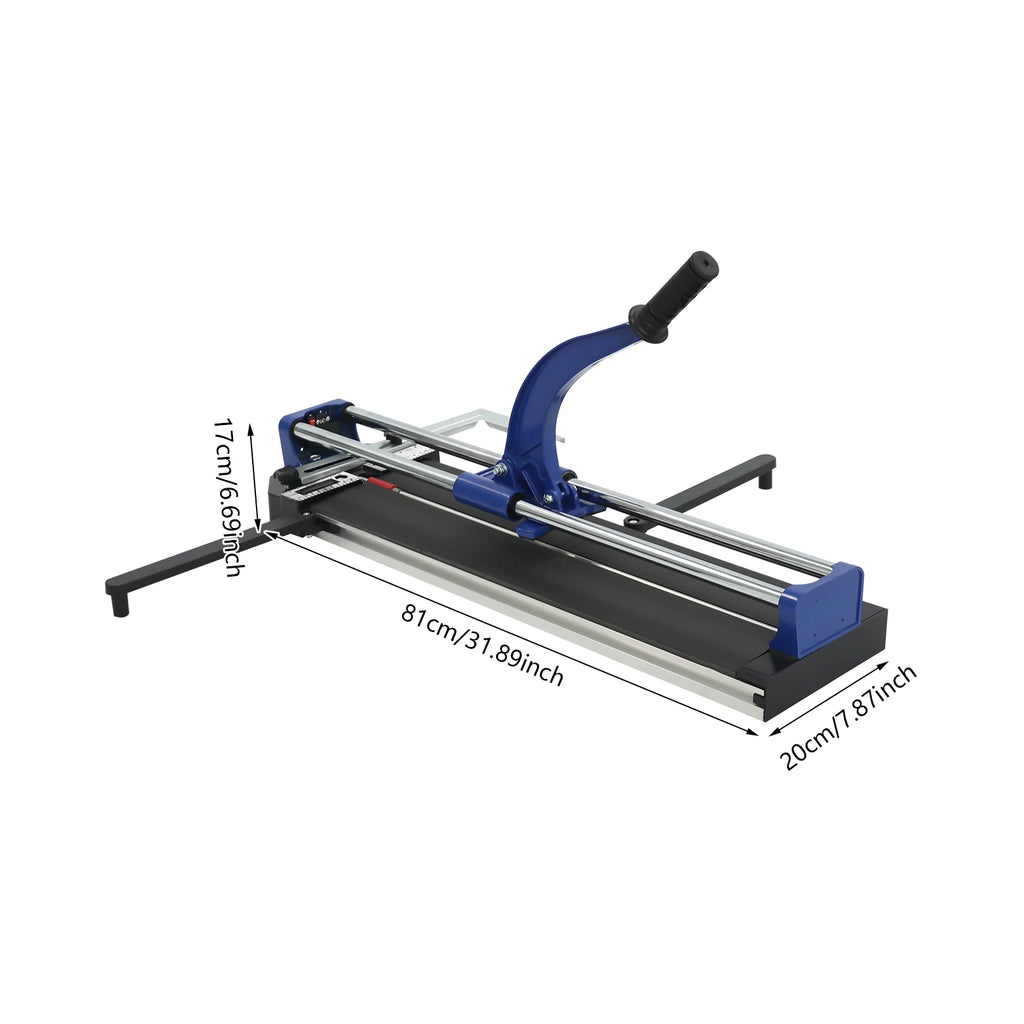

Base Size (L*W): 81*20cm/31*7.87inch

Package Included

1* Manual Tile Cutter (With Balancing Brackets+Ruler Bar)

1* English Manual

Notes

1. Shallow and thin knife marks result in a flatter edge of the tile when chipping, while deep and thick knife marks lead to a slanted and unattractive edge.

2. Please note that the force used when pushing must be light and the cut marks on the top of the tile must not be interrupted, otherwise, the tile will be chipped.

3. It is recommended that you choose a tile with a flat surface to cut.

4. Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.

5. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
