SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: None

Material: Metal

Origin:

Type: Watering Kits

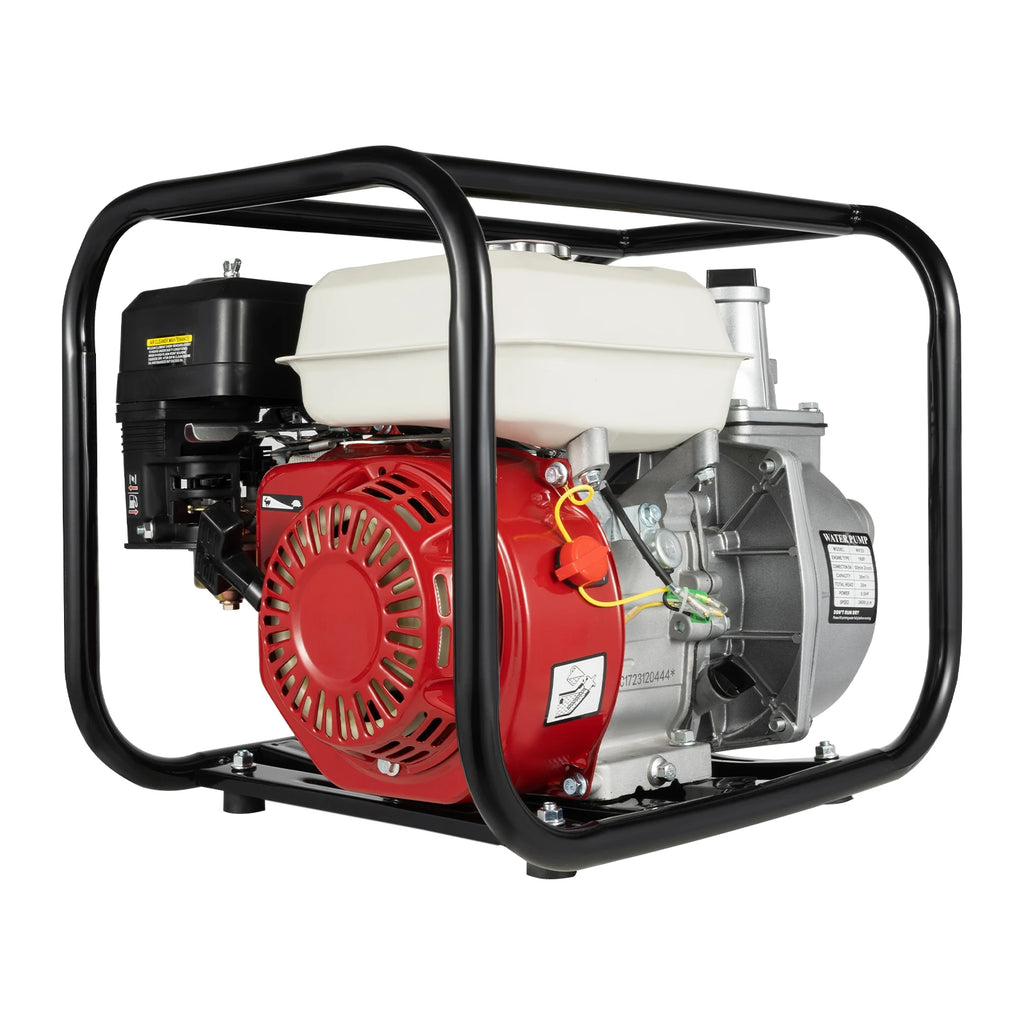

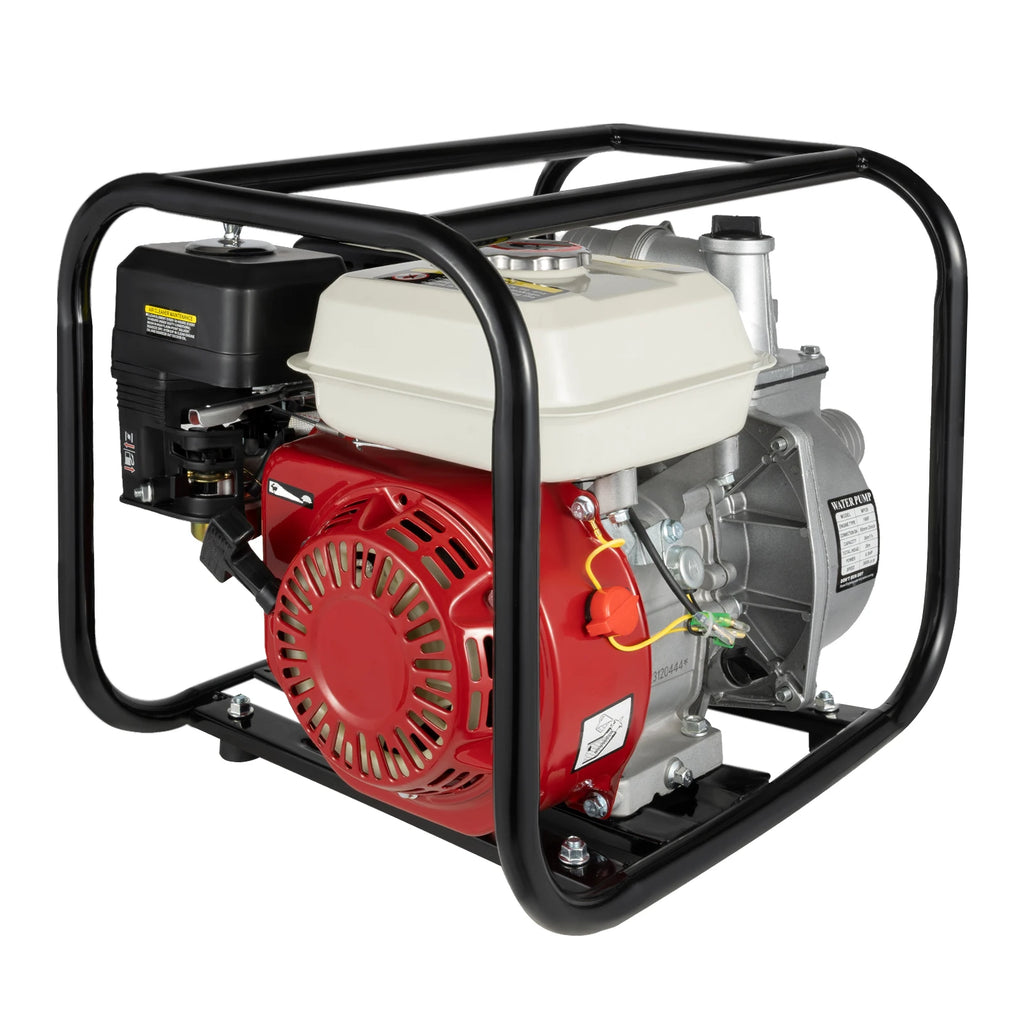

4-Stroke Gasoline Water Pump 6.5HP 210CC Gas Powered Water Transfer Pump for Garden Irrigation Agricultural Water 3600rpmy.

💦Key Features

Great Durability: It is mainly made of high-quality aluminum and iron, and has undergone spraying and welding processes, so it has good wear resistance, corrosion resistance, high temperature resistance, and impact resistance, making it very sturdy and durable.

High Efficiency: It adopts a powerful four-stroke OHV engine, which can generate more power. The 6.5hp, 210cc engine has a high speed of 3600r/min, achieving a 1271.33ft³/h hourly flow rate, 23ft self suction height, and 92ft lift. and efficiently completing various irrigation and drainage tasks in a shorter amount of time.

Long-term Endurance & Energy Saving:The 0.95gal fuel tank allows you to work for a longer time at once, saving you time and effort. A high-quality carburetor allows for better fuel combustion,ensuring a fuel consumption rate of 360ml/kw.h, and reducing fuel consumption.

Good Heat Dissipation: The forced air-cooling system and the dense cooling holes in the casing dissipate heat quickly and promptly, which not only prolongs the engine's service life but also ensures that the engine will not stall even after a long period of operation.

Thoughtful Design: The sturdy frame, quadrilateral base, and enlarged anti-slip padsprovide greater stability and effective vibration reduction, ensuring better performance in harsh environments.

💦Details

Enlarged Inlet and Outlet:Its inlet and outlet have been enlarged to a diameter of 2 inches, which allows for a larger flow rate for a wider range of watering and suction.

Air & Water Filters: The filters can effectively isolate impurities in water and air, prevent blockage of water pipes and water pumps, and improve working efficiency.

Snap-on Fuel Tank Cap: It makes the fuel tank seal better, reduces evaporation, and saves fuel.

💦Application

It can be used for agricultural irrigation, treatment of industrial wastewater, tunnel drainage, road cleaning, alpine water conveyance, flood control and drainage, engineering construction, water extraction from machine wells, fire-fighting water, fishpond aquaculture, and so on.

💦Initiation Step

1. Switch to "ON".

2. Connect the inlet hose and filter.

3. Close the damper and open the gasoline switch.

4. Start the machine.

5. Open the damper.

6. Adjust the speed control seat.

💦Water Pipe Installation Step

1. Place the gasket in the joint.

2. Rotate to install the joint and tighten it.

3. Install the water pipe clamp.

4. The installation is completed.

💦Specifications

Material: Aluminum, Iron, Plastic

Process: Spray Molding, Welding

Color: Red

Engine Type: Single-cylinder, 4-stroke,  Air-cooled

Starting Mode: Manual

Power: 4.8kw

Horsepower: 6.5hp

Fuel Type: Gasoline

Fuel Tank Capacity: 3.6L/0.95Gal

Fuel Consumption Rate: 360ml/kw.h

Engine Oil Capacity: 0.6L/0.16Gal

Speed: 3600rpm

Displacement: 210cc

Noise: About 96dB

Intake and Outlet Diameter: 5cm/2inch

Pump Lift: 28m/92ft

Pump Output: 36m³/h/1271.33ft³/h (9510GPH)

Self-suction Height: 7m/23ft

Product Size: 46.2*36*38.7cm/18.19*14.17*15.24inch

Package Size: 50.5*40.5*40.5cm/19.88*15.94*15.94inch

Net Weight: 18.45kg/40.68lbs

Gross Weight: 19.8kg/43.65lbs

💦Package Included

1* Water Pump

1* Inlet Pipe Connection

1* Outlet Pipe Connection

1* Sleeve Rod

1* Filter

4* Foot Pads

1* English Manual

Other Accessories for Assembly

💦Notes

1. Please fill the pump head with water before starting to avoid damaging the pump head. The machine needs to be filled with gasoline and four-stroke engine oil before use to prevent cylinder explosion due to insufficient lubrication and overheating.

2. Please do not use the machine indoors or in a damp environment. Please keep the product away from inflammable items.

3. Please turn off the machine and do not smoke when refueling. Please do not add excessive fuel to avoid potential danger caused by fuel overflow.

4. Please read the manual completely before use, and pay particular attention to the safety instructions included.

5. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
