SPECIFICATIONS

Brand Name: NONE

Hign-concerned Chemical: None

Origin:

Type: Garden Tool Parts

Use: Home DIY

is_customized: No

Description

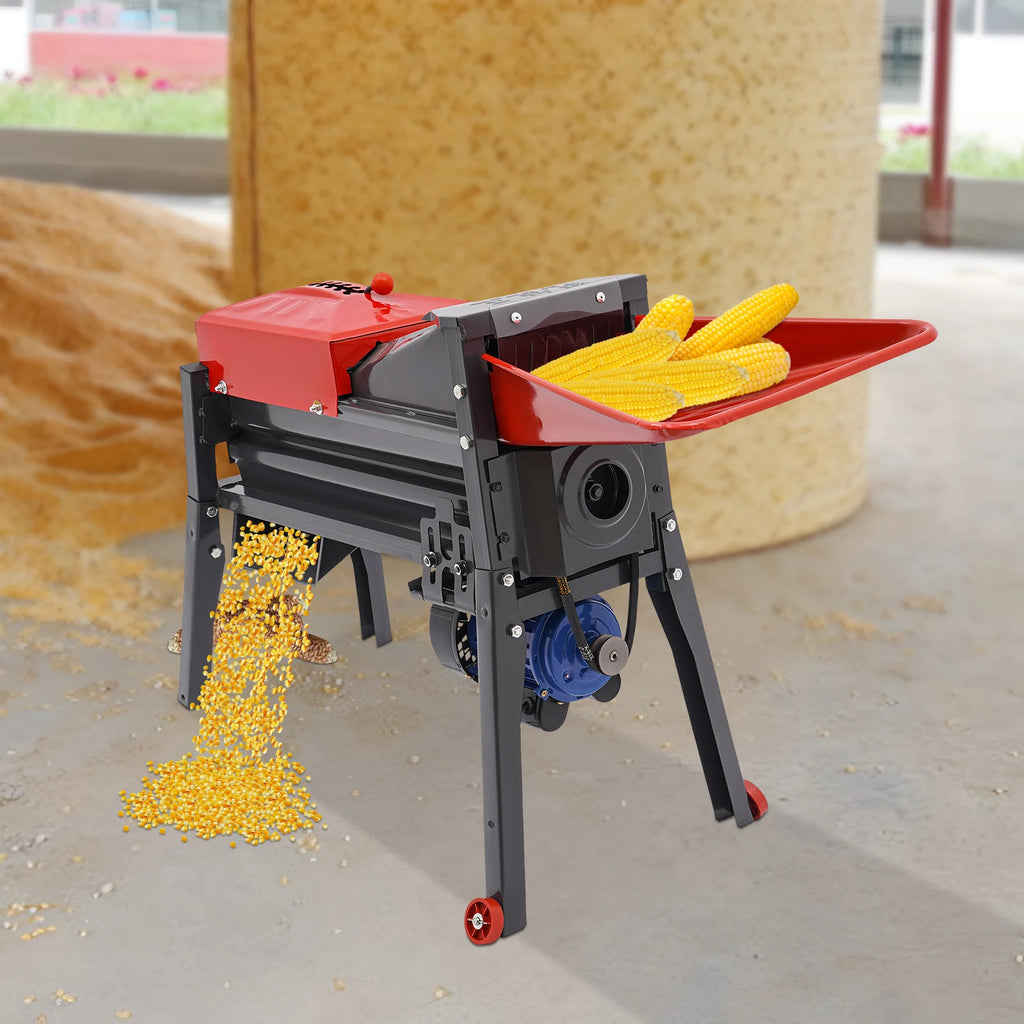

The manual extraction of corn kernels, an age-old practice steeped in tradition, poses challenges of both temporal demand and physical exertion. Our elegantly designed electric corn threshing machine emerges as a sophisticated solution, alleviating these woes with its marriage of technology and efficiency. This innovative apparatus ushers in a new era of convenience and respects the time-honored process, infusing modernity into an agricultural ritual.

Key Features

Build to Last: The premium steel with a baking paint process makes this product safe, wear-resistant, corrosion-resistant, and less prone to rust and oxidation, so it can maintain good aesthetics and practicality.

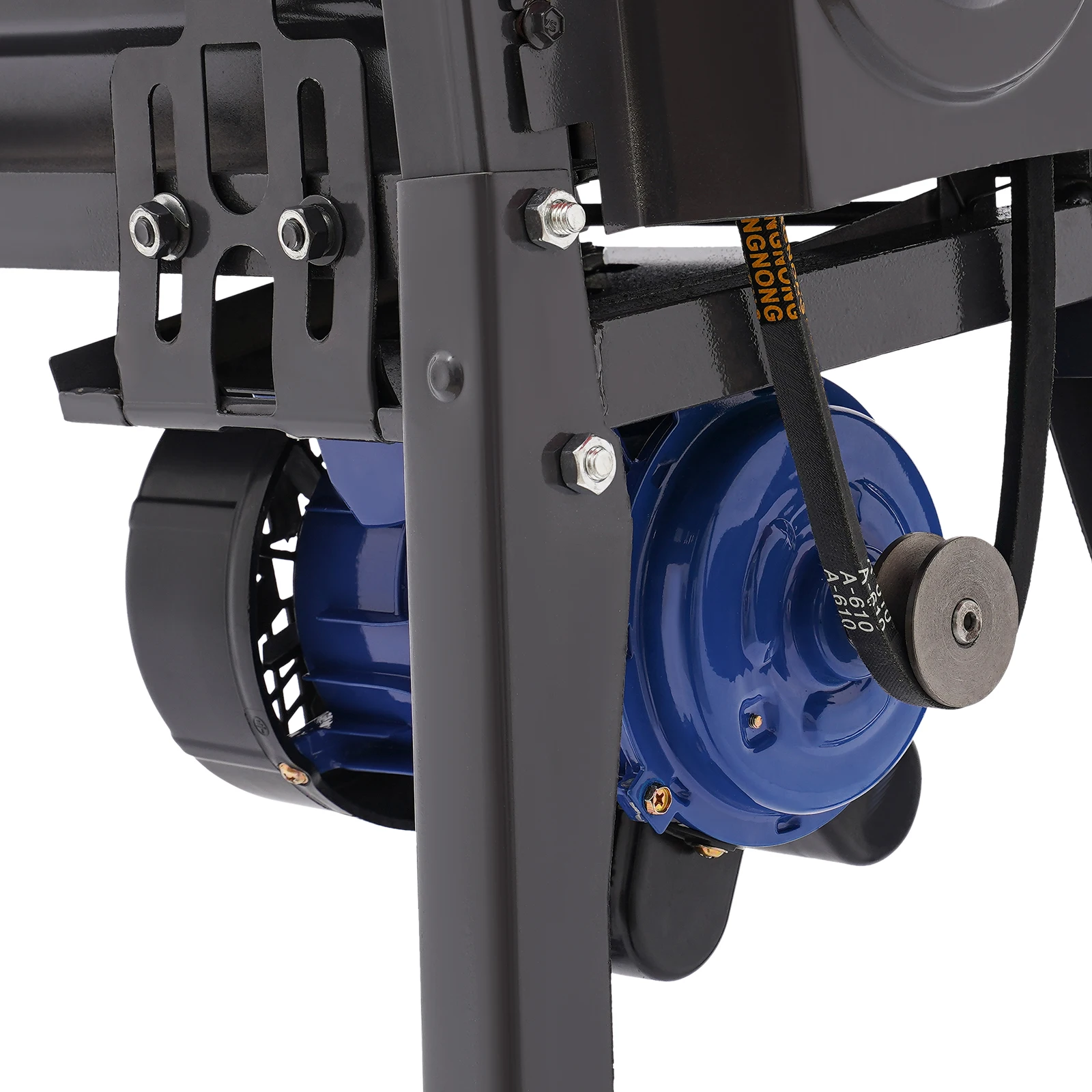

Excellent Performance: It adopts a new bladeless technology, which protects the corn kernels from falling off completely and does not damage the core. The belt transmission system is easy to maintain, wear-resistant, and durable, which can effectively extend the product's life. The double spring automatic adjustment further improves the threshing rate.

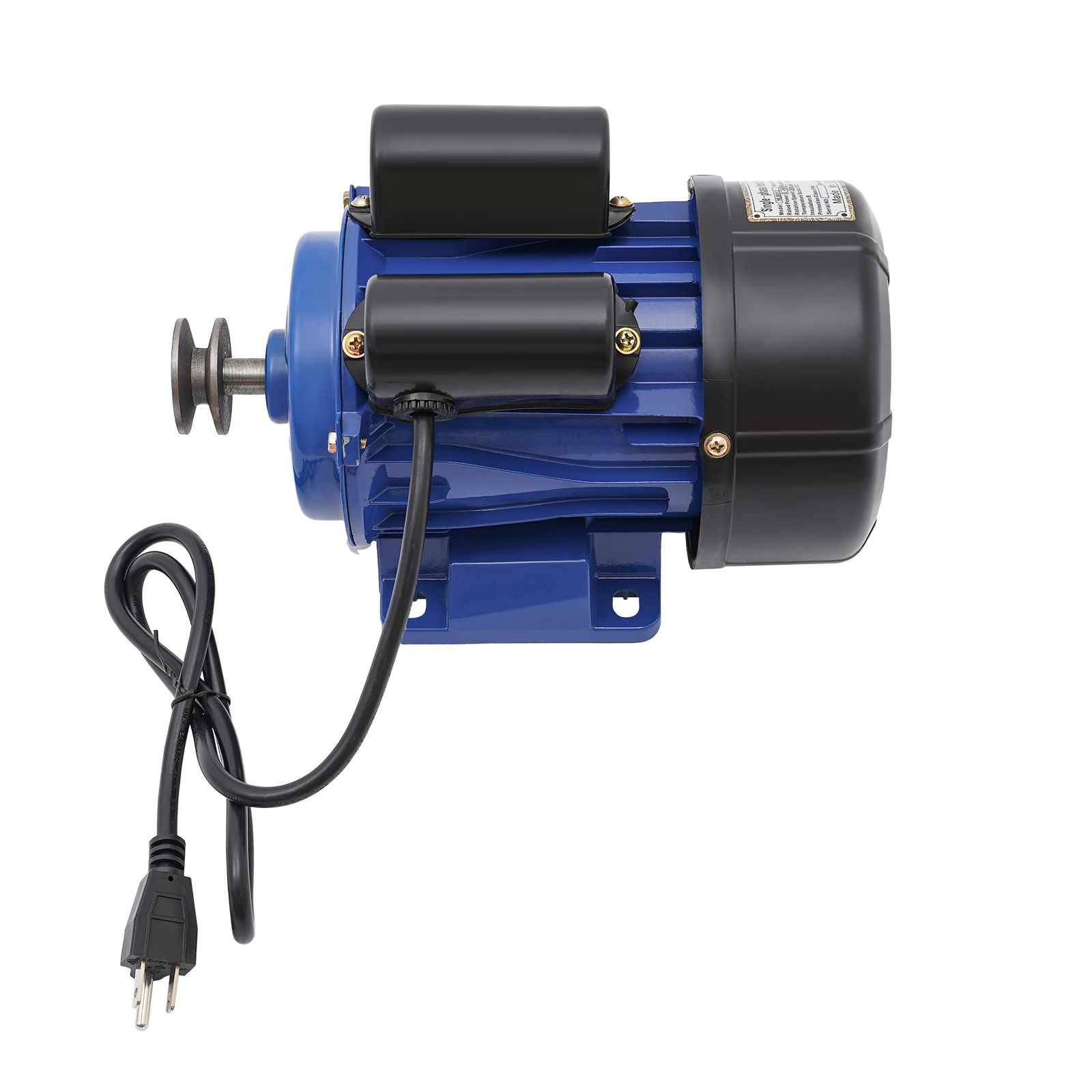

Powerful Function: The powerful 0.48 KW pure copper motor and 2,800 rpm efficiently thresh corn (up to 2,204-3,307lbs per hour), giving you faster kernels to eat or feed to livestock.

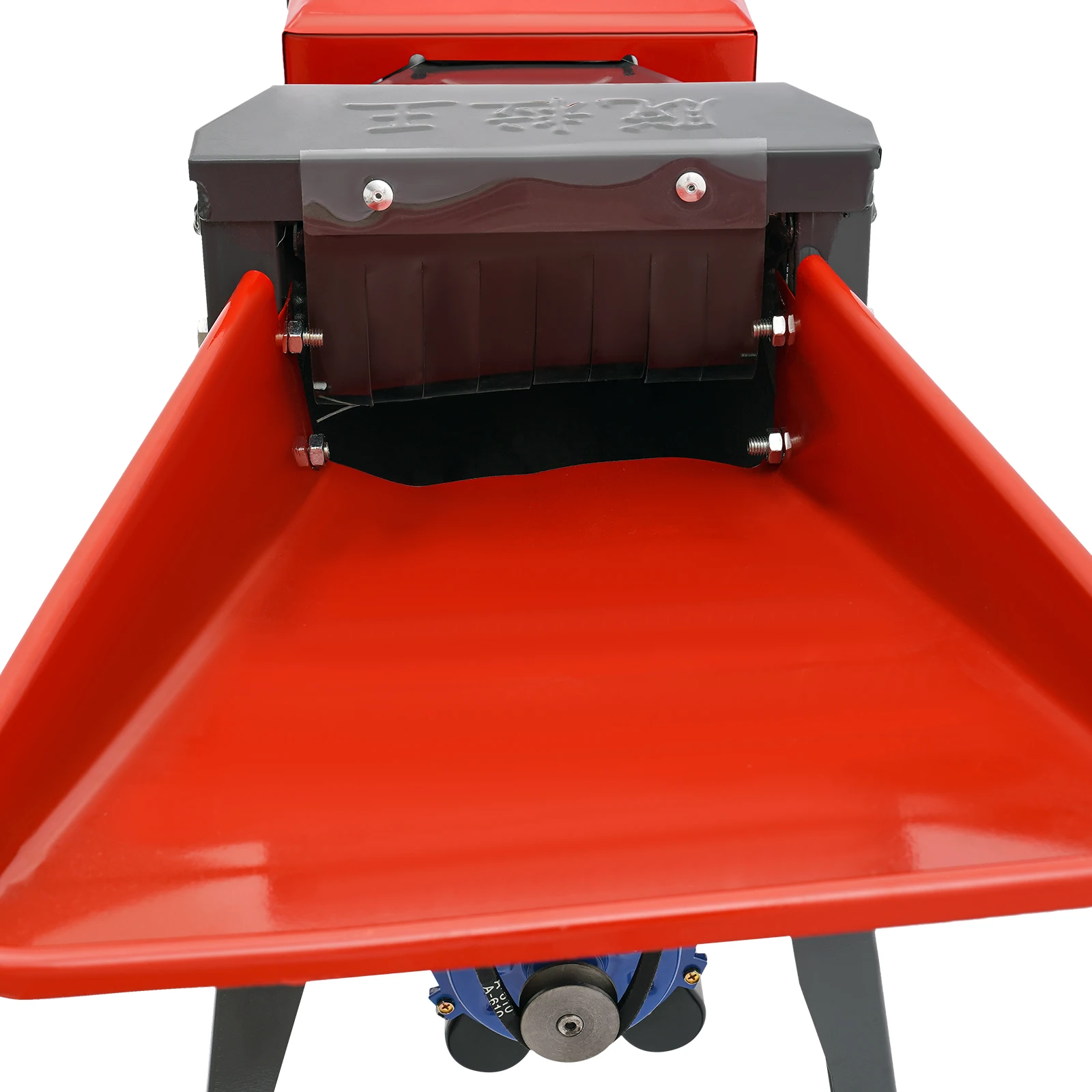

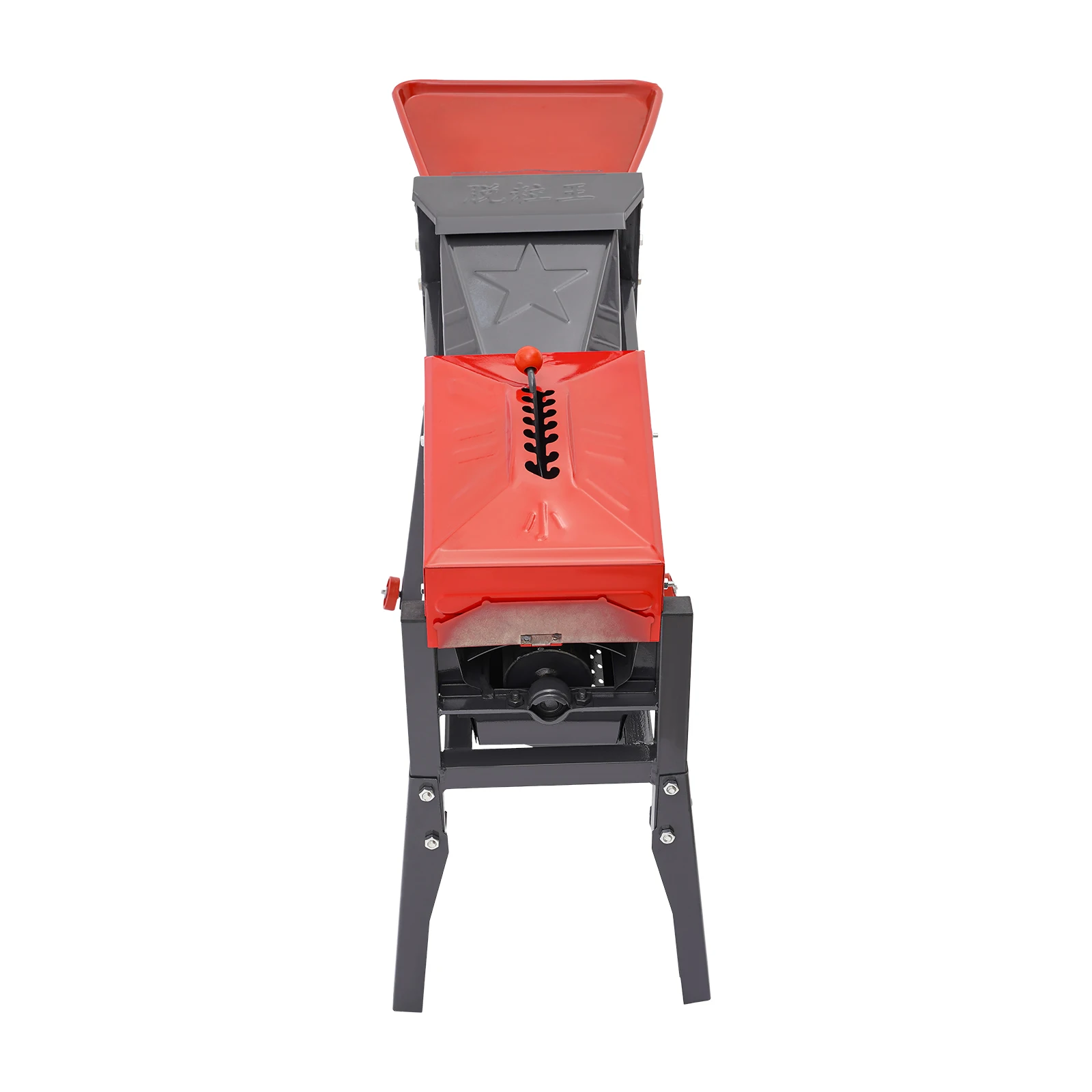

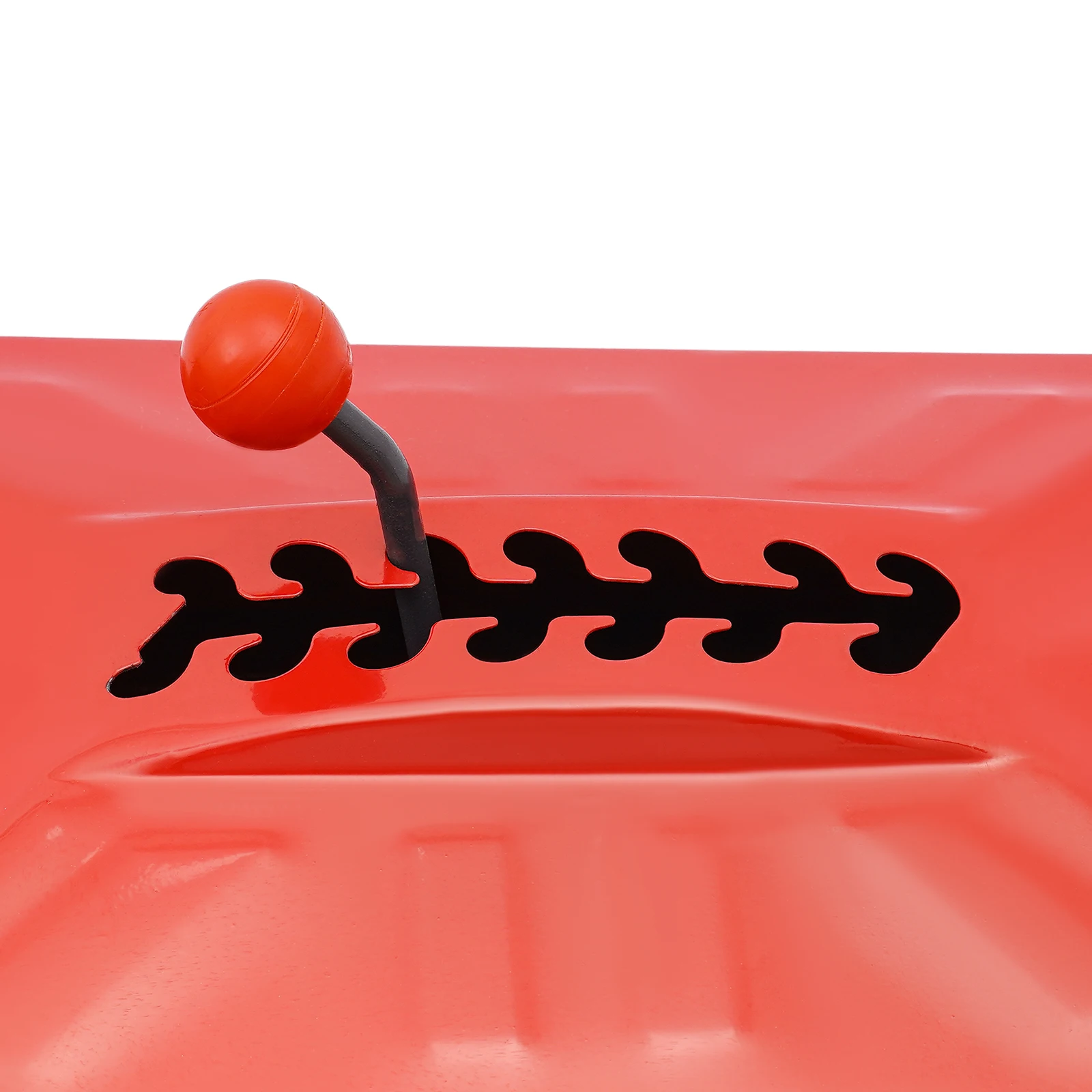

Thoughtful Design: The enlarged feeding tank (16.14*15.75in) allows you to place multiple corns simultaneously, and you can adjust the appropriate gear according to the size of the corn (13 adjustable gears), which in turn greatly improves the corn threshing rate.

Safety First: The IP44 protection rating and uniform heat sinks on the motor ensure stable and safe operation. The belt protection cover not only protects the belt but also prevents injury caused by accidental contact with the belt. The anti-bounce curtain can prevent corn kernels from popping out and improve safety.

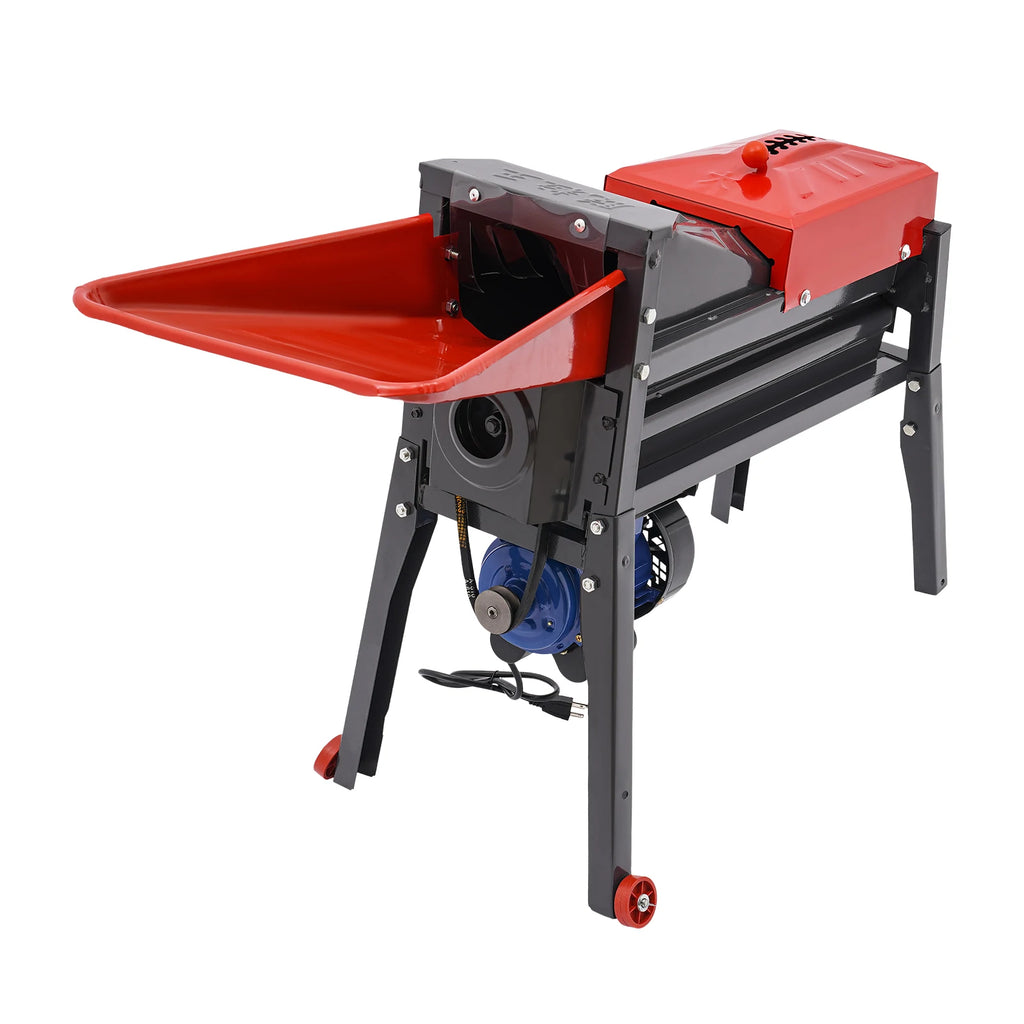

Move at Will: The two wheels at the bottom make it easy for you to move to this machine with little effort, and even the elderly can move easily, very convenient!

Simple Installation: With complete accessories and simple construction, you can put it all together yourself and put it to use right away!

Ideal Gift: With its powerful function, this product is an ideal housewarming and holiday gift for family, friends, and loved ones, so that they can enjoy a more convenient life.

Protective Package: To prevent the product from being damaged and bumped during transportation, we packed it with foam to protect your products to the maximum extent possible.

Details

Pre-drilled Holes: The pre-drilled holes on the motor make it easy for you to mount it to the product.

Smooth Outlet: It allows for a smoother flow of separated kernels. The leak hole design effectively separates dust and impurities.

Thickened Bearing Seat: It facilitates faster placement and is accompanied by a low noise level.

Application

It is an ideal tool for achieving rapid corn threshing and is suitable for homes, ranches, and farms.

Specification

Material: Steel

Process: Baking Paint

Color: Black, Red

Assembly Required: Yes

Mount Type: Freestanding

Motor Model: YL8012

Motor Type: Single-phase Induction Motor

Power Source: Corded Electric

Plug Type: US Standard

Temperature Scale: 75°C/167°F

Insulation: B

Threshing Rate: 99%

Protection Class: IP44

Rated Power: 0.48KW

Rated Current: 4.3A

Rated Voltage: 110V

Frequency: 60Hz

Rotation Speed: 2800r/min

Efficiency: 1000-1500kg/2204-3307lbs

Machine

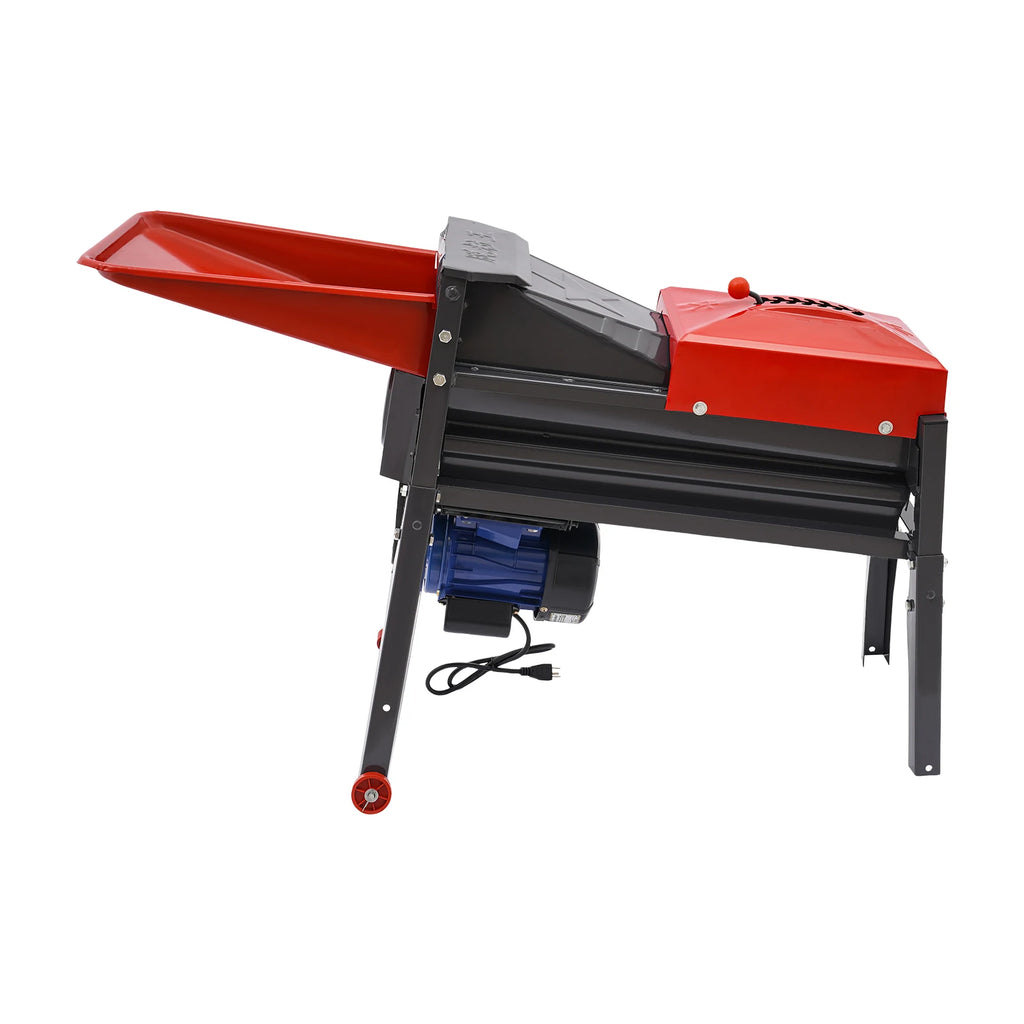

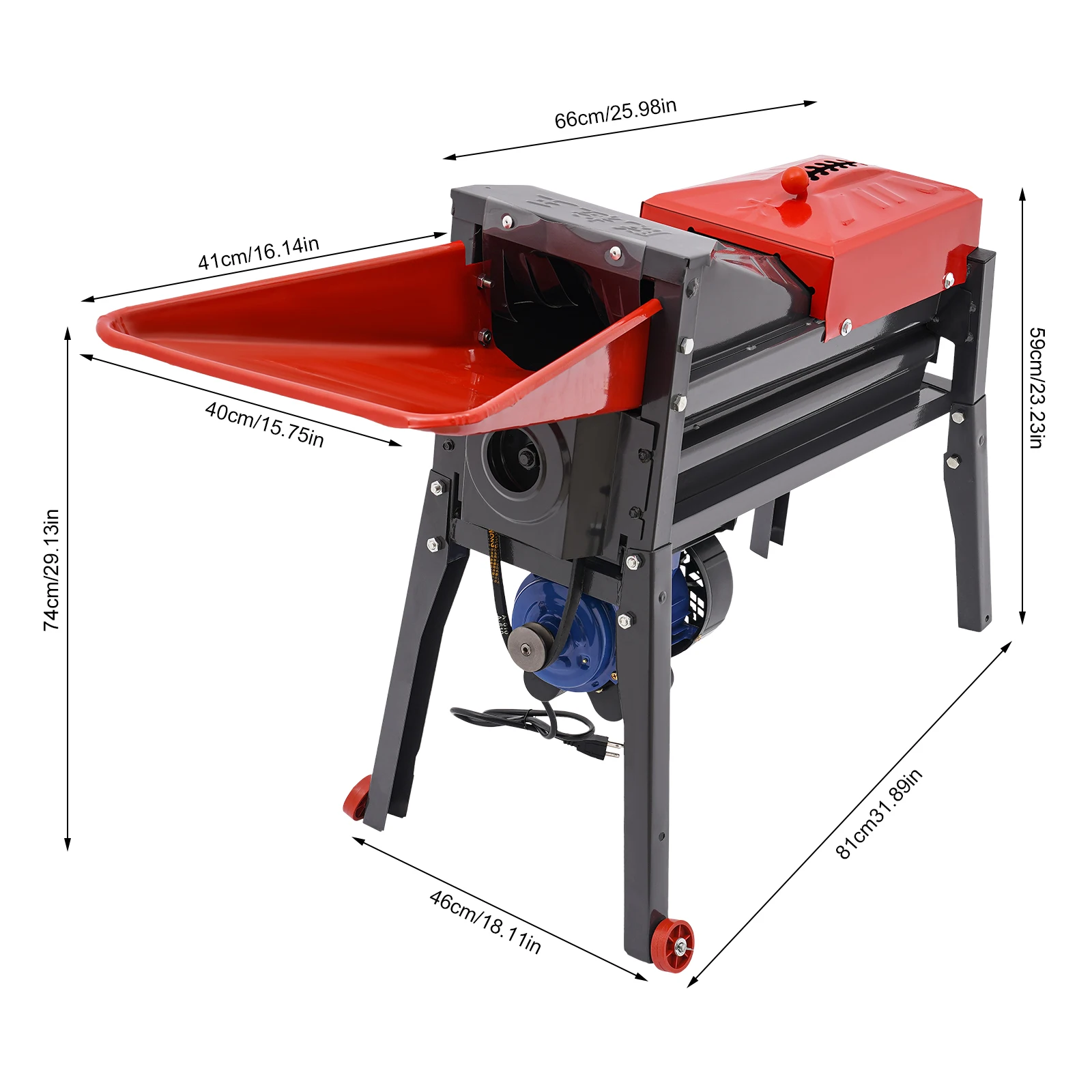

Product Size: 81*46*74cm/ 31.89*18.11*29.13in

Feeding Tank Size(L*W): 41*40cm/ 16.14*15.75in

Package Size: 64*34*28cm/ 25.2*13.39*11.02in

Gross Weight: 14kg/ 30.86lbs

Net Weight: 12.5kg/ 27.56lbs

Motor

Package Size: 34*25*24cm/ 13.39*9.84*9.45in

Gross Weight: 8kg/ 17.64lbs

Net Weight: 7kg/ 15.43lbs

Package Included

1* Electric Corn Threshing Machine

1* Motor

Other Accessories for Use

Notes

1. Please note that it is better to use dry corn for threshing.

2. Please note that this product is shipped in two packages.

3. Before use, please check that the motor is mounted in the correct direction.

4. We suggest adding lubricating oil (not included) to all bearings in the product every 6 months.

5. Please store the product in a dry and ventilated place after use.

6. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
