SPECIFICATIONS

Brand Name: BOGUANG

Cable: Output port 0.9 m long MC 4 connector wire

Cell efficiency: 23%

Certification: CE,FCC,RoHS,weee

Flexible Solar Panel: Yes

Foldable Solar Panel: No

High-concerned chemical: None

Material: Monocrystalline Silicon

Max. Power: 1500W / 600W / 450W / 300W /150W

Maximum power current(Imp): 6.9

Model Number: Flexible Solar Panels

Module Efficien: 21.8%

Nominal Capacity: 1500W / 600W / 450W / 300W /150W

Number of Cells: 39 cell

Number of Panels: >20

Open circuit voltage (cov): 25.9V

Origin:

PET Solar Panel: Semi-Flexible

Rigid Solar Panel: No

Short circuit current (Isc): 7.59A

Size: 1140*530*25mm /1160*565*2.5MM

Type: Solar Panel

Vmp: 21.6V

Waterproof: IP67

Weight: 2.2KG

is_customized: Yes

Black Flexible Solar Panel

BOUGANG NEW Semi- Flexible Solar Panel Balcony Photovoltaic PV 1500W 600W 450W 300W 150W| IP67 | Grade A cells | PET

Features:

* Conversion efficiency 24%.

* Generate electricity all day in the sun.

* Can be used for fish tank circulation system, monitoring group, household photovoltaic energy storage,

* Lightweight and easy to install.

* Outdoor photovoltaic power generation portable device.

* Wide range of compatibility: sailboats, yachts, marine applications, motorhomes, expedition vehicles, commercial trucks, caravans, off-grid and telematics sites, etc.

Specification:

Maximum power (Pmax) 150W

Maximum system voltage 1000V DC

Open circuit voltage (cov) 25,9 V

Short circuit current (Isc) 7,59 A

Vmp 21.6V

Maximum power current(Imp) 6,9 A

Temperature range -40℃～+80℃

Cell Monocrystalline silicon cell

Number of cells 39 pieces

Cell efficiency 23%.

Weight 2.2kg

Size 1140*530*2.5mm

Standard test conditions lrradiance 1000w/m^2,Temperature 25℃, AM=1.5

LOW PROFILE, DURABLE AND EFFICIENT

Adventure BOGUANG Semi-Flexible solar panels are the perfect choice for a permanent 12V set up on your vehicle! They're low profile, durable and efficient.

PERFECT FOR CURVED SURFACES

Designed so they can be easily fixed to your canopy, roof rack, trailer, caravan or even boat, these panels offer enough flex to be mounted on curves or uneven surfaces*.

HIGH QUALITY GRADE A MONOCRYSTALLINE SOLAR CELLS

Monocrystalline solar cells offer the best efficiency compared to polycrystalline or amorphous. Adventure BOGUANG take it a step further by only using the highest quality GRADE A cells for even higher efficiency and up output.

TOUGH AND EASY TO CLEAN

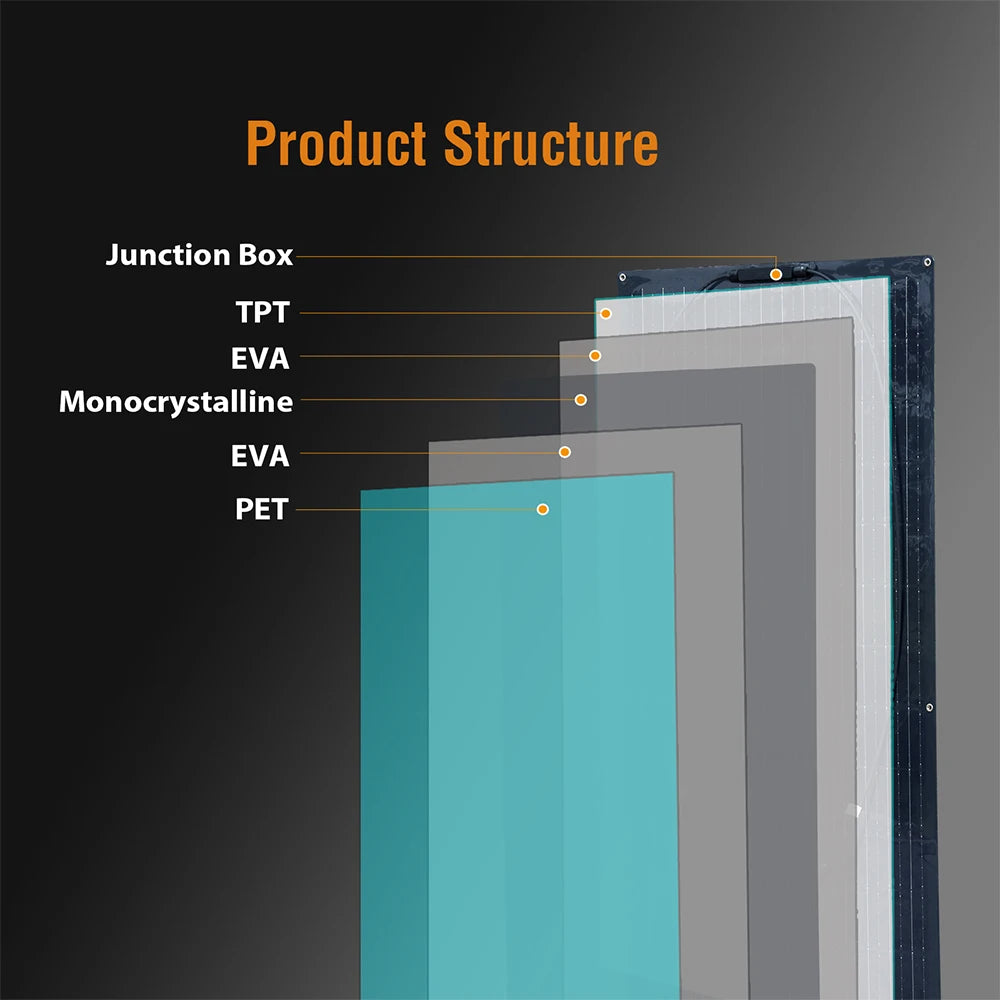

They’re constructed with tough and durable PET (PolyEthylene Terephthalate) which is polished smooth so it’s easy to clean. Adventure Kings Semi-Flexible Solar Panels also have built in bypass diodes that mean if one cell is dirty or shaded the others will continue working at maximum efficiency.

IP67 DUST + WATERPROOF RATING

Perfect for 4WDers and campers who use their rigs rain, hail or shine or even in salt-spray, beating sun and snow with an operating range of -40°C to +85°C and an IP67 dust and waterproof rating.

EASY TO INSTALL AND CONNECT

Easy to join up, with pre-connected PV plugs you can simply extend out the wiring and connect to your Adventure BOGUANG Solar Regulator or DC-DC charger (available separately) to instantly start your battery charging.

SUPER THIN AND LIGHTWEIGHT

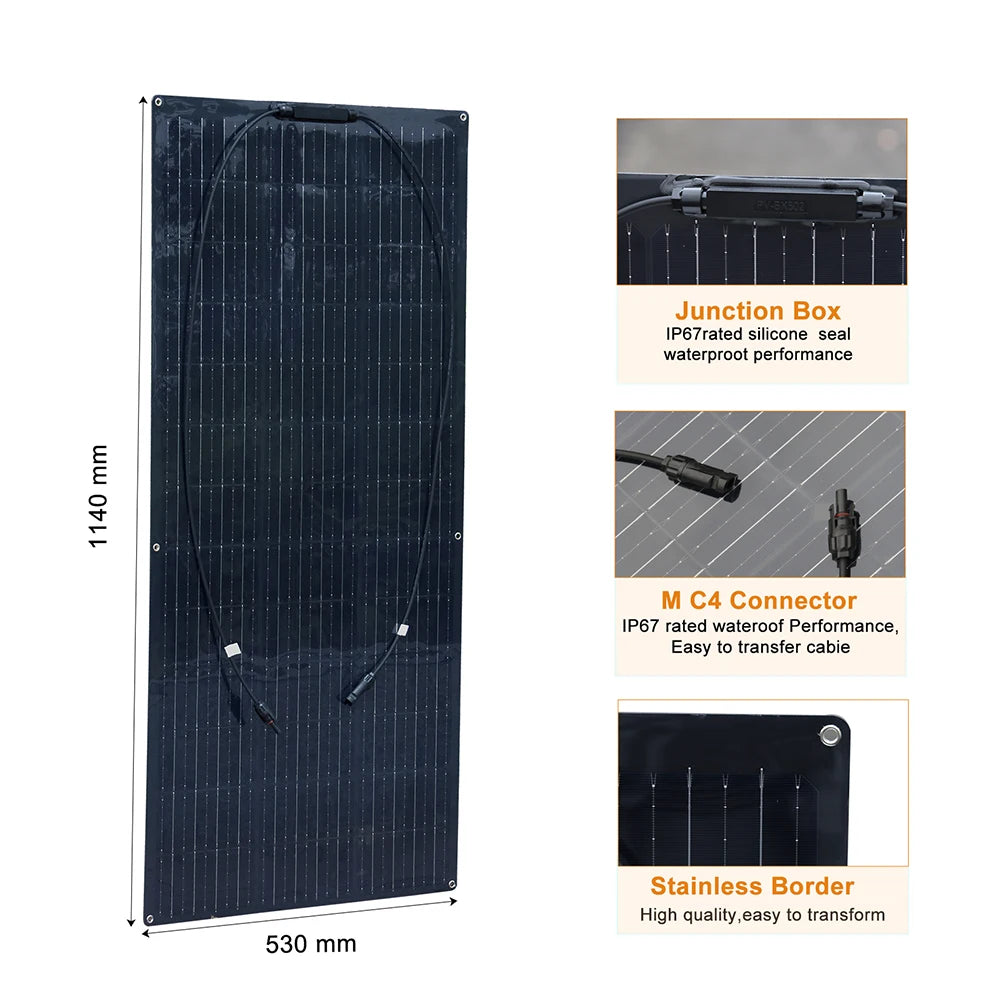

Measuring in at 114cm by 53cm and 0.25cm thick (not including the small junction boxes) and weighing under 2.2kg, they’re a great choice where you want big power without sacrificing fuel economy, or don’t want any extra weight on your roof that may affect your centre of gravity.

PLEASE NOTE

*Extreme or uneven curves can damage the panels, so be sure to support the panel during installation and when fitting into place. Do not bend the panel more than 30°

OR 18.8V 150 W Solar Panel
