Material:Monocrystalline silicon

Maximum Power(Pmax):100W±3%

Maximum Power Voltage(Vmp):18.00V

Maximum Power Current (Imp):6.1A

Open-Circuit Voltage (Voc):22.5V

Short-Circuit Current (Isc):6.35A

Nominal Operating Cell Temp.(NOCT):-45 to 80℃

Maximum System Voltage: DC1000V

Foldable Dimension:28x20.5x0.47(in)/70x50x1.2(cm)

Expansion Dimension:40x28x0.24(in)/100x70x0.6(cm)

Net Weight: 2.7 kg

Package Weight:3.6kg

Package Size:75x58x7cm

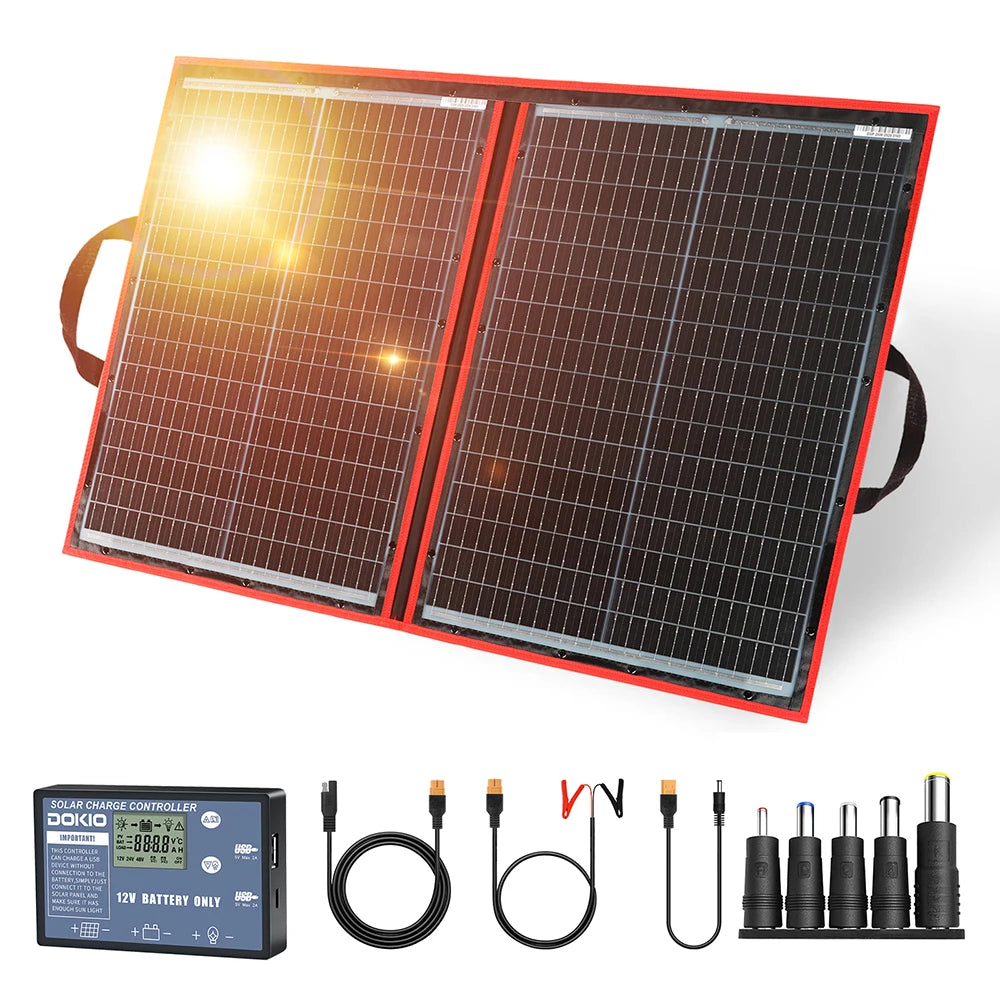

Package List:

1*100W Flexible Foldble Solar Panel (50W*2)

1*3M wire,

1*10A 12Vcontroller,

(The above data is based on the laboratory standard test environment)

For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:

AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.）

Controller support lead-acid,lithium ions and LiFePO4 battries.
Cable thickness: 2x1.0 mm²
A total of 4M long cable. With alligator clips.
