DOKIO 18V Foldable Solar Panel With Portable 12V Charger For Camping/Powerbank/Battery/Home 300W Solar Kit
300W / GERMANY
$325.71
Skip to product information
DOKIO 18V Foldable Solar Panel With Portable 12V Charger For Camping/Powerbank/Battery/Home 300W Solar Kit
$325.71
SPECIFICATIONS
Brand Name: DOKIO
Certification: CE
Flexible Solar Panel: Yes
Foldable Solar Panel: Yes
High-concerned chemical: None
Material: Monocrystalline Silicon
Number of Panels: 4
Origin:
Rigid Solar Panel: No
Type: Solar Panel
Dear customer, due to product upgrade,
the size and weight of the product you receive may be different.
Delivery is not supported in the following areas:
Spanish island region. The zip code starts with "35" and "38".
Model:FFSP-300M
Material:Monocrystalline silicon
Maximum Power(Pmax): 300W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):16.67A
Open-Circuit Voltage (Voc): 22.50V
Short-Circuit Current (Isc):16.92A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage: DC1000V
Foldable Dimension:39.37x19.69x0.94(in)/100x50x2.4(cm)
Expansion Dimension:78.74x39.37x0.24(in)/200x100x0.6(cm)
Net Weight:7.1kg
Package Weight:8.2kg
Package Size:108x57x7cm

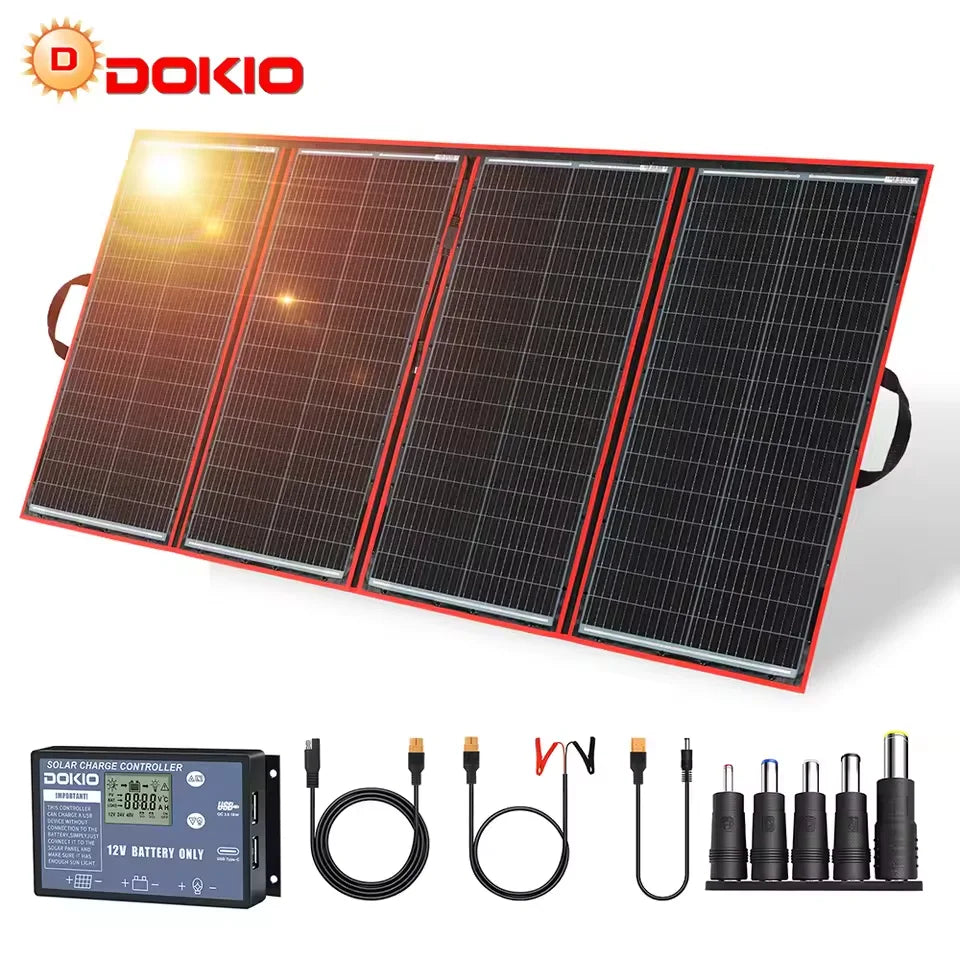

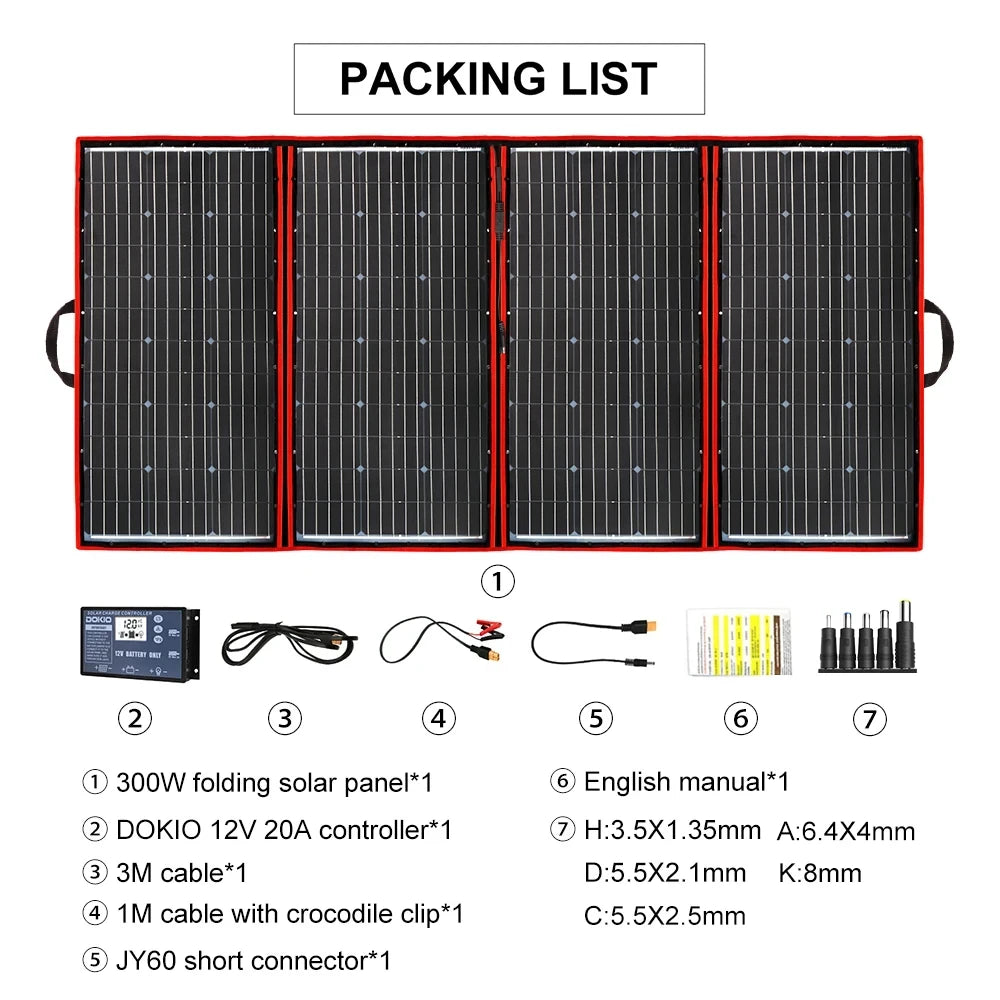

Package List:
1*300W Flexible Foldble Solar Panel
A total of 4M long cable. With alligator clips.
1*20A 12Vcontroller
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.）

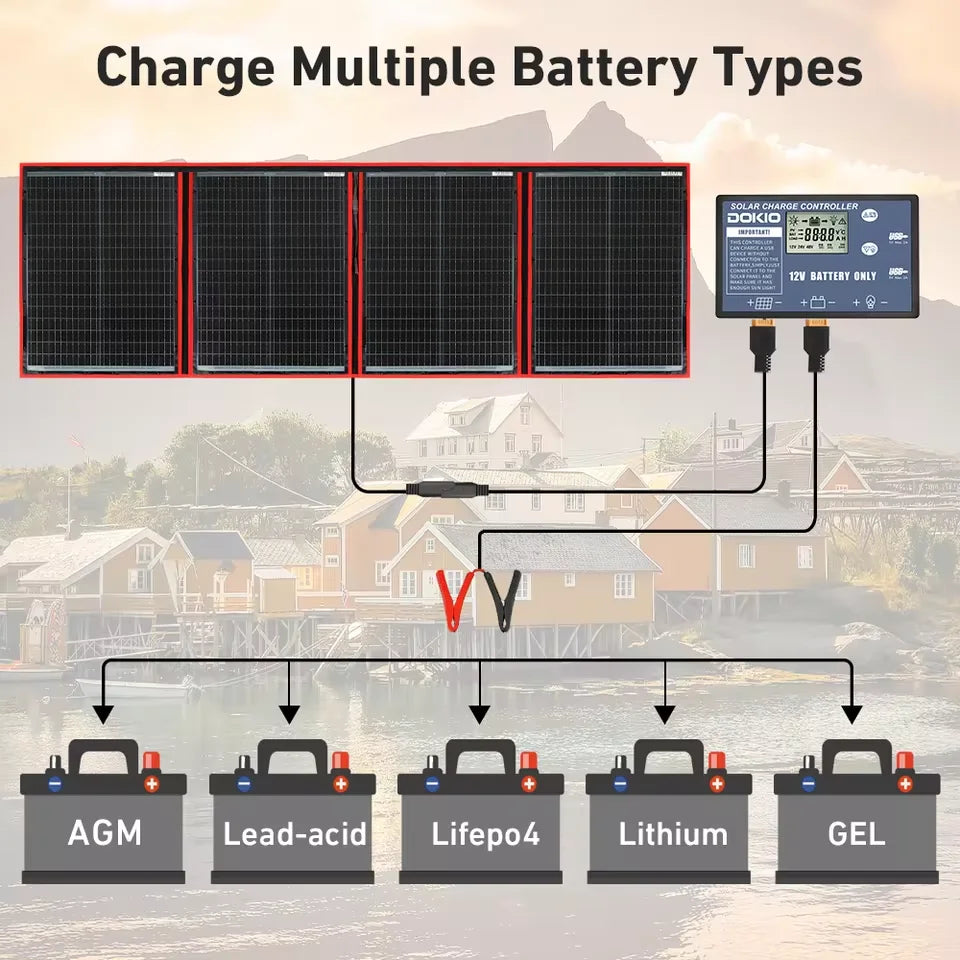

Controller support lead-acid,lithium ions and LiFePO4 battries.
Cable thickness: 2x1.0 mm²
A total of 4M long cable. With alligator clips.
