SPECIFICATIONS

Brand Name: JINGYANGPV

Certification: CE,RoHS

Flexible Solar Panel: Yes

Foldable Solar Panel: No

High-concerned chemical: Urethane (Ethyl carbamate)

Material: Monocrystalline Silicon

Max. Power: 130W

Model Number: BSP33-18BB-125

Module Efficien: 24%

Nominal Capacity: 125W

Number of Cells: 33

Number of Panels: 1

Origin:

Rigid Solar Panel: No

Size: 1050MM*580MM*2.5MM

Type: Solar Panel

is_customized: Yes

Technical Specification

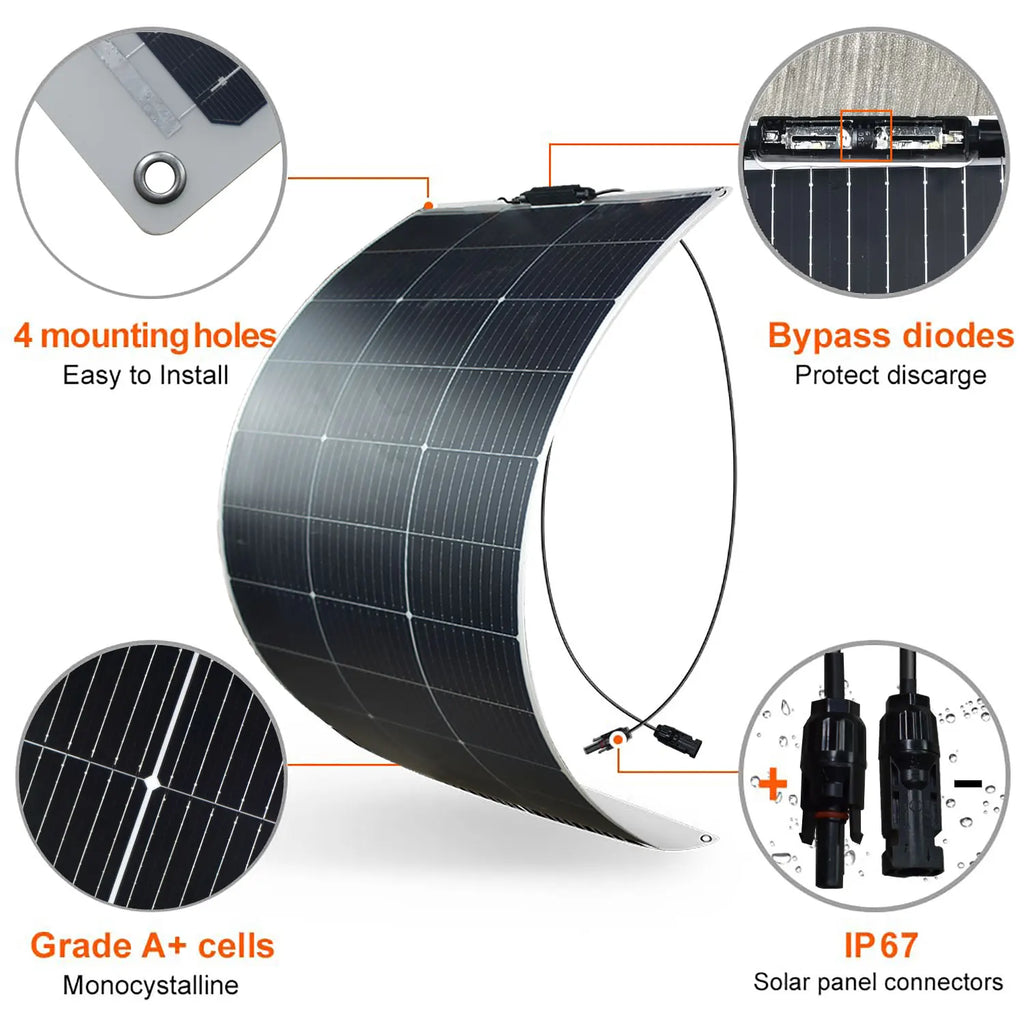

This high efficiency 125W flexible waterproof monocrystalline solar panel is perfect for permanent outdoor use to provide free electricity for charging 12V batteries to power various applications, such as in a motorhome, caravan, camper, boat, or for solar lighting systems, off-grid, and back up solar power systems. Back-contact solar cells withefficiency of up to 22%make this panel ideal for applications where space is restricted, or where there are obstructions on the roof. The panel can also be used to provide direct power supply for applications not sensitive to changes in input voltage / current (e.g. electric motors or pumps) and for various grid-tie applications.

This particular model features the junction box and cables on theunderside of the panelto create a completely level surface and professional finish after installation. Please note that in order for this panel to be flush mounted, it is necessary to create a recess in the roof/surface on which the panel is to be mounted.

Key Benefits:
- Flexible design makes it ideal for curved roofs and surfaces for bonding
- Incredibly lightweight (only 2.33kg) which is great for all vehicles
- High resistance to salt water environment (junction box and cables underneath are protected from contact with water) and possibility to walk on the panel make it perfect for boats and yachts
- Sealed waterproof design ensures the panel can be used in all weather conditions
- Junction box on the back allows for a smooth and level surface, free of trip hazards and unsightly cables

Newly BSP 33-18BB-125

Material: Monocrystalline silicon

Maximum Power(Pmax):125W±3%

Maximum Power Voltage(Vmp):19.80V

Maximum Power Current (Imp):6.30A

Open-Circuit Voltage (Voc): 23.76V

Short-Circuit Current (Isc):6.85A

Nominal Operating Cell Temp.(NOCT):-45 to 80℃

Maximum System Voltage:DC1000V

Maximum Series Fuse:15A Dimension:1055MM(L)*569MM(W)*2.5mm(H)
