WUZECK 12V Solar Panel Kit 200W 2pcs 100W Solar panels with 12V 24V 20A controller, extension cable, battery connection cable
WUZECK 12V Solar Panel Kit 200W 2pcs 100W Solar panels with 12V 24V 20A controller, extension cable, battery connection cable
SPECIFICATIONS
Brand Name: WUZECK
Certification: CE,FCC,RoHS,weee
Flexible Solar Panel: Yes
Foldable Solar Panel: No
High-concerned chemical: None
Material: Monocrystalline Silicon
Max. Power: 200 Watt
Model Number: 200 W solar panel kit
Module Efficien: 21.8%
Nominal Capacity: 12V 10A OR 24V 5A
Number of Panels: 2
Origin:
Rigid Solar Panel: No
Size: 1060*530mm / 975*550mm
Type: Solar Panel
is_customized: Yes
Shipping Information
Dear Buyer:
Thank you for ordering from our store.
For Some Remote Area of Spain or France, there is no freight service, pls check the zip code as following:
For Spain: 35xxx 38xxx 07xxx 51xxx 52xxx.
For France: 987xx 986xx 984xx 971xx 988xx 975xx 976xx 973xx 974xx 972xx.
Please contact with us for confirm your zip code.
For Spain Island and France Island, there may be extra remote freight cost, so if there were remote cost, then we will contact with buyer.
For USA Client: there are remote area as well, so if your area belongs to remote area, we will contact with you as well.
Features:
[Multiple Compatibility] Perfect solar power kit for a variety of off-grid applications like shed, cabin, gate opener, etc where 12V battery is used, as well as to charge and maintain AGM, Flooded, GEL, Deep Cycle and Seal Lead Acid, etc batteries in the car, Rv, boat, marine, trailer, camper, pump, etc.

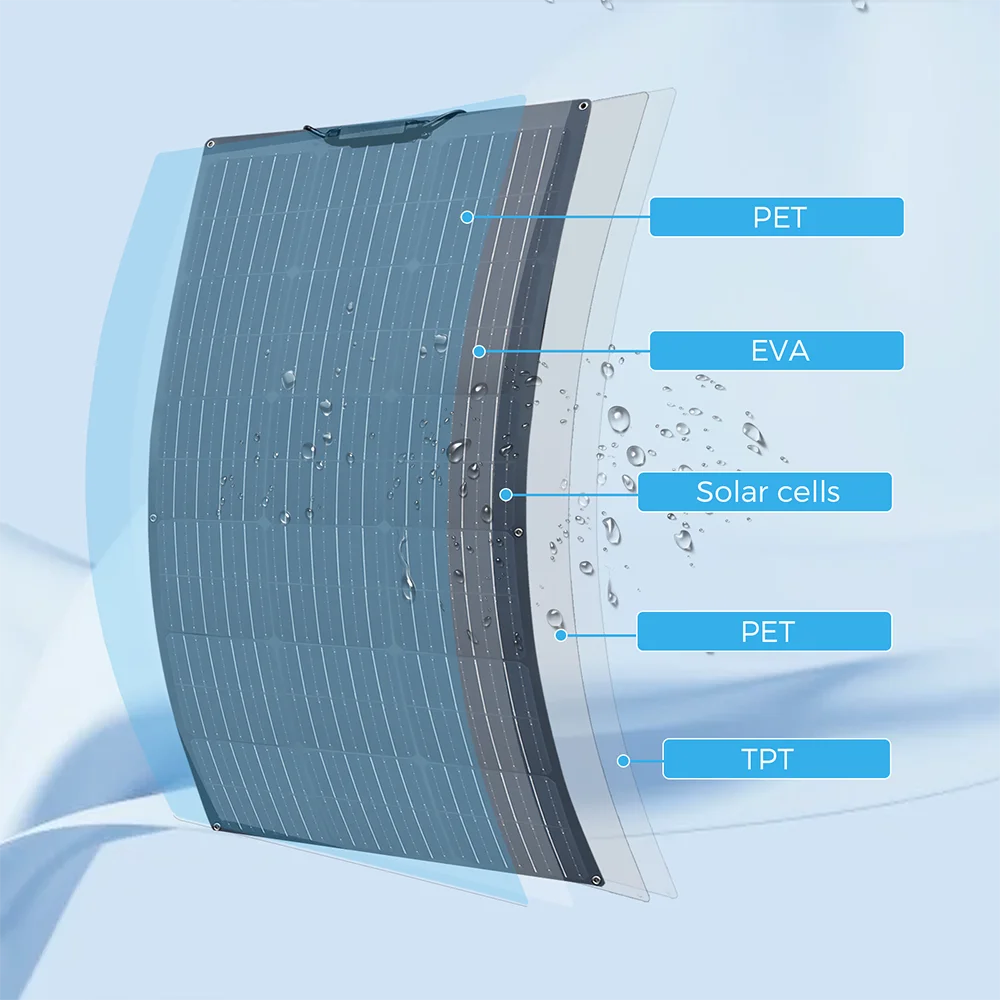

[Light weight] Made of high efficient solar cells,withstand extreme weather conditions like UV, anti-rusting, IP65 waterproof.

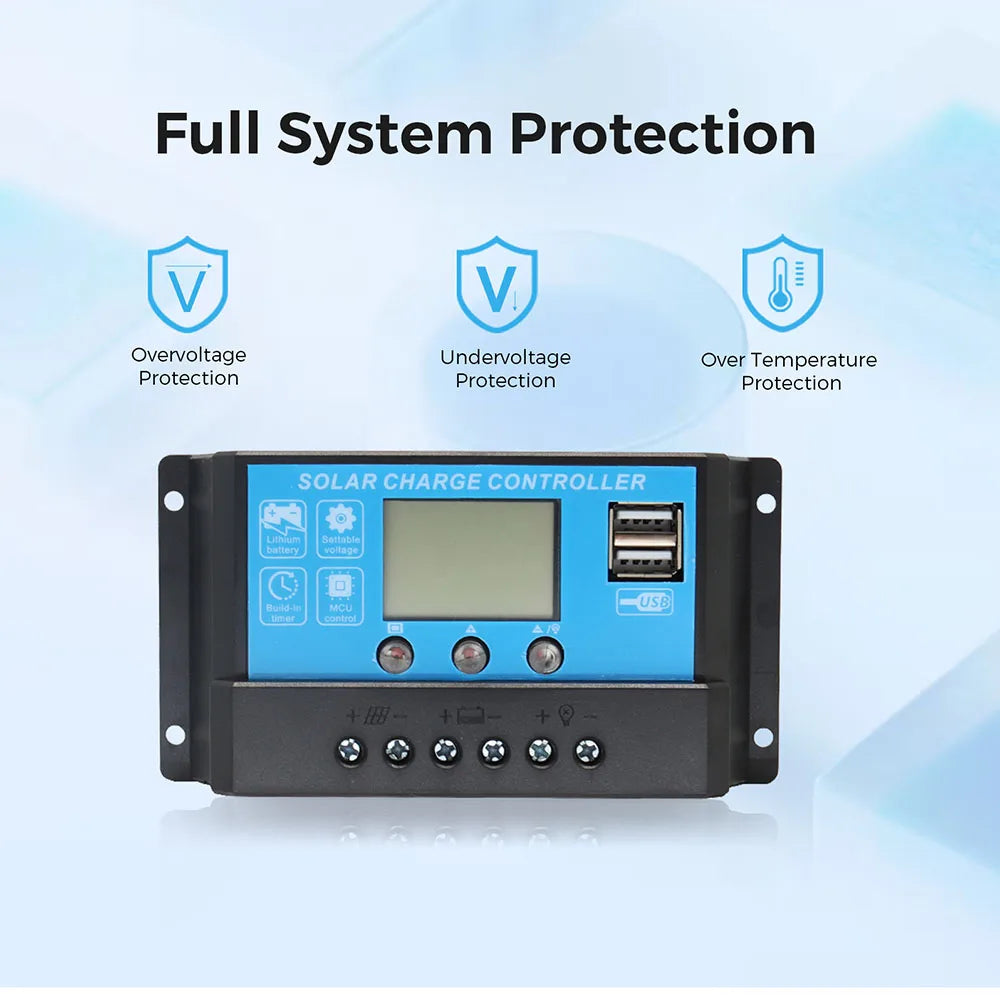

[Intelligent Charging] Optimized 3-stages charging algorithm allows to charge the battery more efficiently, and prevent the battery from overcharge, over-discharge, over-voltage, short circuit, etc, fully protect battery and extend the lifetime.
[Visual Monitor] Visual bright LED indicators help to monitor battery conditions and better understand the status of solar panel and load. Exclusively equipped three working modes for load, allowing to set up the load to work under dusk to dawn automatically plus working hours according to personal requirement, very practical and useful.

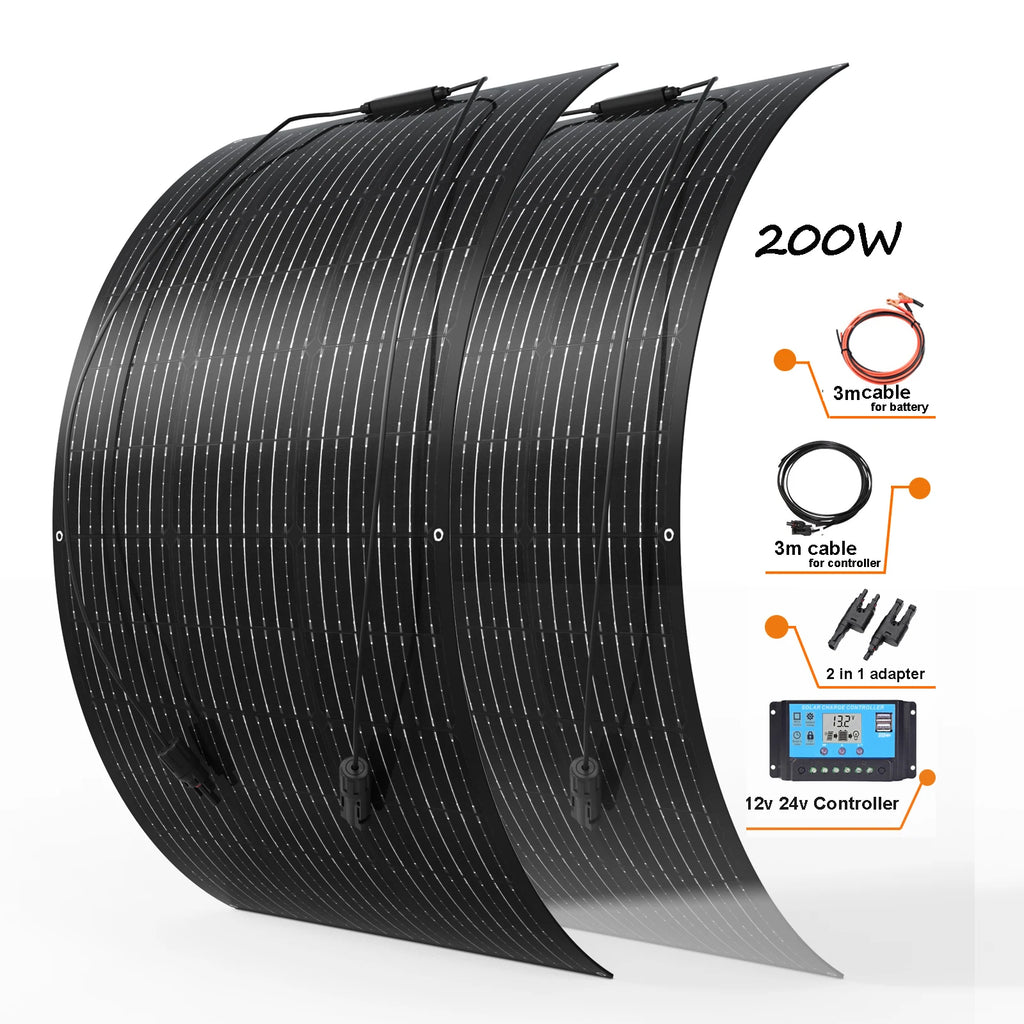

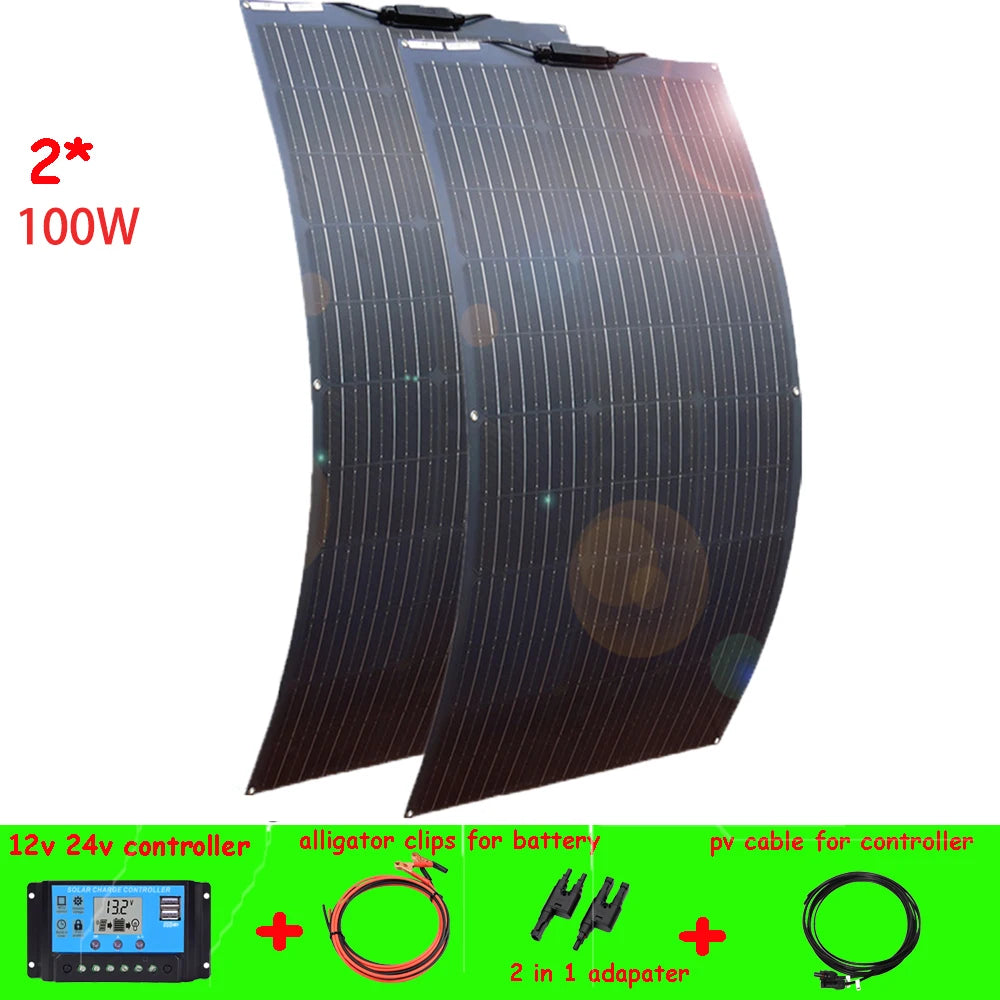

12V 24V 200W kit Packing listing：
1. 2pcs 100w solar panel
2. 20A 12v/24v charge controller
3. 1 set Extension cable with PV connector
4. 1 set cable with alligator clip （connect to battery）
5. 1 set 2 in 1 PV connector （in parallel solar panel
19.8V 100W Flexible solar panel Specification
Maximum power(Pmax) 100W
Maximum system voltage 700V DC
Open circuit voltage(Voc) 23.76V
Short circuit current(Isc) 5.55A
Maximum power voltage(Vmp) 19.8V
Maximum power current(Imp) 5.05A
Weight 2.1KG
Size 1060*530*2.5mm/975*550mm
Operating temperature(NOCT) 45 plus or minus 2 Celsius system
STC: lrradiance1000w/m2,Temperature 25 Celsius system, AM=1.5
Please note: If you test the solar panel, the solar panel must be tested under the sun. The solar panel is exposed to sunlight at different times and the temperature is different, which will affect the output power of the solar panel.
OR
Safety Instructions:
1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
2.The battery cable should be as short as possible to minimize loss.
3.The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL ,lithium ions (It is not suited for nickel metal hydride, or other batteries).
4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

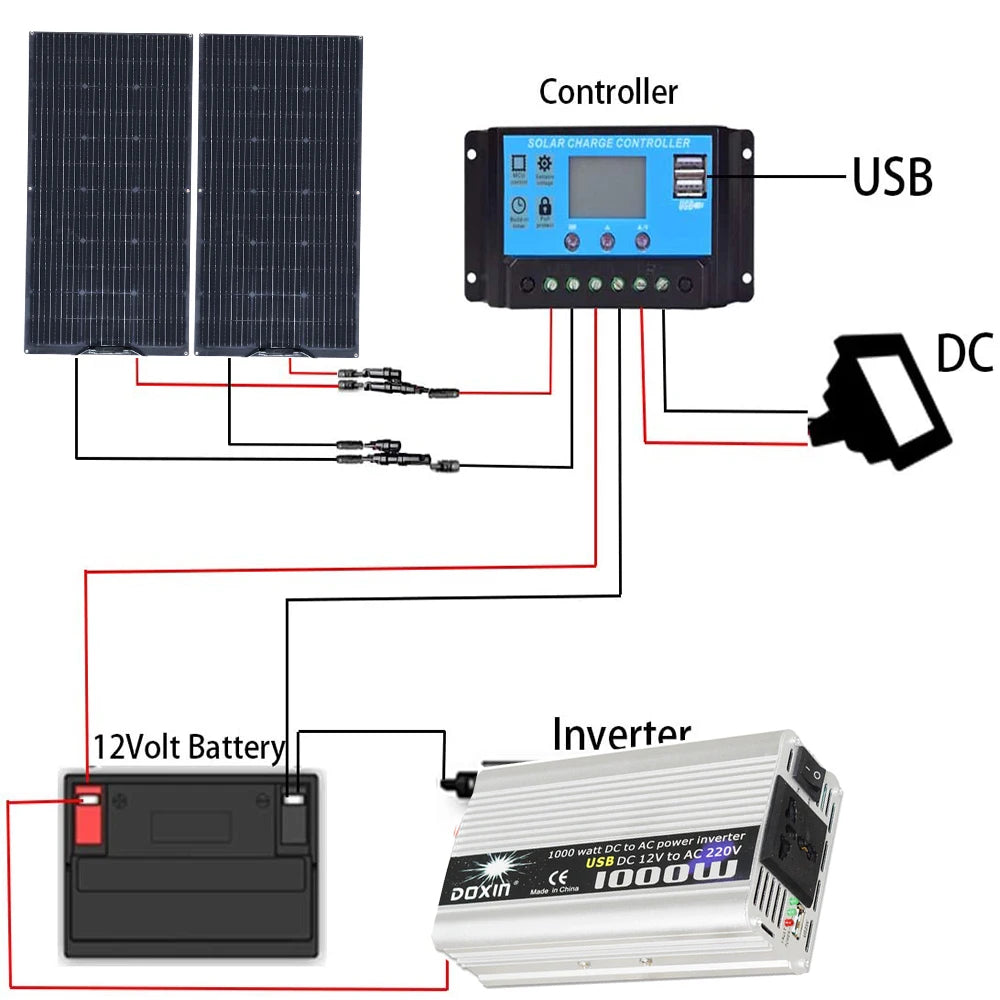

System Connection:
1.Connect the battery to the charge regulator - plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
Controller connection instructions
a Before connecting the solar panel, please connect the controller to the battery first. Connecting the solar panel without connecting the battery may cause the controller to burn out and fail to display.
b After the controller is connected to the storage battery, connect the above-mentioned series or parallel solar panels to the controller through the transfer cable.
c Finally, connect the required DC load to the load end of the controller. If the load does not work, press the third button of the controller.
d According to the controller manual, adjust the parameters you need.
