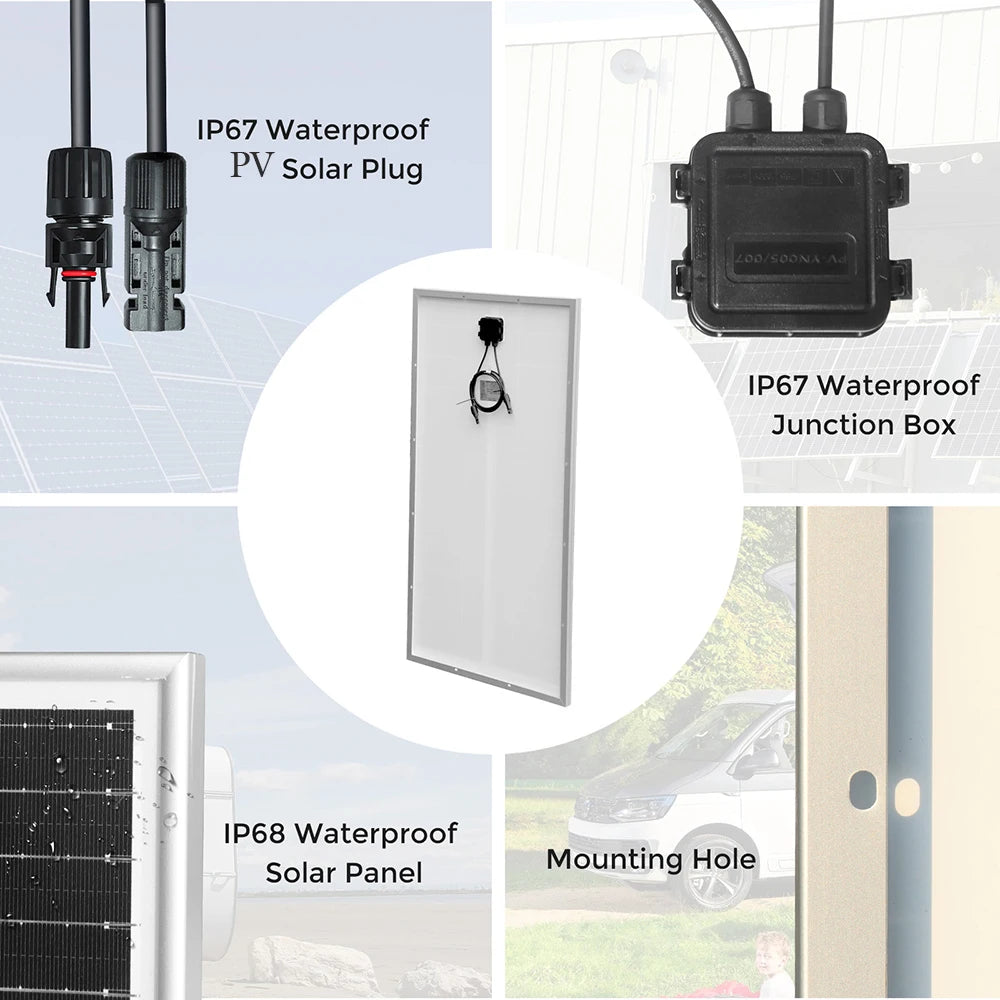

XINPUGUANG Rigid Solar Panel 19.8V 150 Watt Glass Monocrystalline Waterproof Solar Panels Charging 12V 150W Camping/Home/RV
XINPUGUANG Rigid Solar Panel 19.8V 150 Watt Glass Monocrystalline Waterproof Solar Panels Charging 12V 150W Camping/Home/RV
SPECIFICATIONS
Brand Name: xinpuguang
Certification: CE,weee
Flexible Solar Panel: No
Foldable Solar Panel: No
High-concerned chemical: None
Material: Monocrystalline Silicon
Max. Power: 150 Watt
Model Number: XPGG1-150M
Module Efficien: 24%
Nominal Capacity: 150W
Number of Panels: 1
Origin:
Rigid Solar Panel: Yes
Size: 1140*560*25MM /1140*530*25mm
Type: Solar Panel
is_customized: Yes
Product Description:
19.8V 150W Solar Panel
Maximum Power(Pmax):150W
Maximum Power Voltage(Vmp):19.8V
Maximum Power Current (Imp):7.57A
Open-Circuit Voltage (Voc):23.76V
Short-Circuit Current (Isc):7.94A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:15A
Dimension:114*56*2.5cm
Package Dimension:117.5*57.5*4.5cm
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.14AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.）
Glass 21.5V 150W SOLAR PANEL Product
Maximum power (Pmax) 150W
Maximum system voltage 1000V DC
Open circuit voltage (cov) 25,9 V
Short circuit current (Isc) 7,59 A
Vmp 21.6V
Maximum power current(Imp) 6,9 A
Temperature range -40℃～+80℃
Cell Monocrystalline silicon cell
Number of cells 39 pieces
Cell efficiency 23%.
Weight 6.5kg
Size 1140*530*25mm
Standard test conditions lrradiance 1000w/m^2，Temperature 25℃, AM=1.5
