XINPUGUANG Solar Panel 300w 400w 200w 100w Flexible Monocrystalline Solar Cell Photovoltaic Solar Panels Kit 12V Battery Charger

solar panel redefines compatibility, effortlessly powering a wide range of devices to make your life easier, from home to RV to yacht. Compatible with various battery types: AGM GEL FLD and LI, it ensures that wherever you are, your power needs are covered
Engineered for superior performance and stable power supply, our solar panel boasts a high-transmittance monocrystalline solar technology with remarkable conversion rate greater than 23%. It's designed to maximize energy conversion

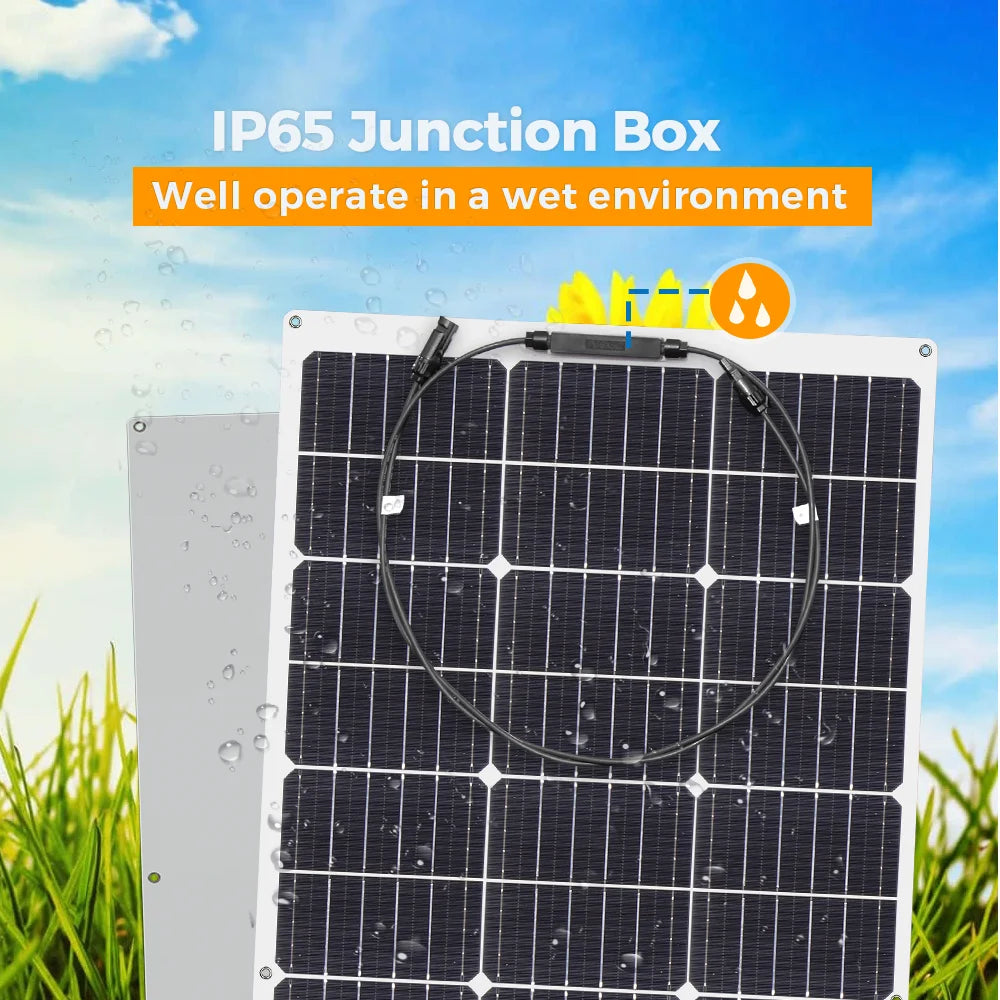

,Weatherproof Solar Connector – Built for Extreme Conditions!✔ IP67 Rated – Fully waterproof & dustproof✔ Wide Temperature Range – Works from -40°C to 85°C✔ 50% More Durable – Enhanced wear resistance
Lightweight & Flexible Solar Panel 30° flexibility - Adapts to unique installation needs Weather-resistant - Works in harsh conditions
✔ 70% Lighter than traditional glass solar panels✔ Just 3mm Thick - Slimmest profile in the market

Packing listing

1pcs 100w flexible solar panel

or

2pcs 100w flexible solar panel

or

3pcs 100w flexible solar panel

or

4pcs 100w flexible solar panel

or

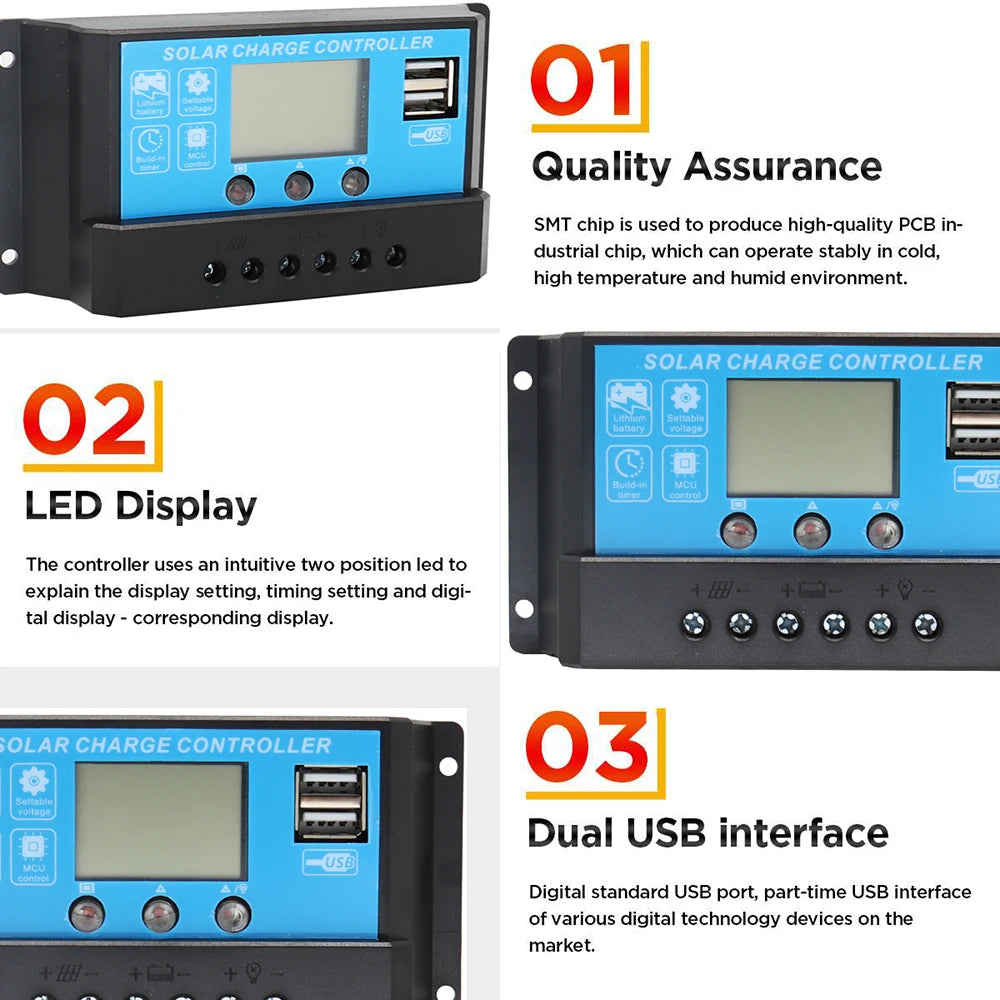

100w solar system= 1pcs 100w 12v flexible solar panel +12V/24V 10A solar charger controller+1 set 3 meters cable with PV connector +1 Set 3 meter cable with Alligator clip

200w solar system= 2pcs 100w 12v flexible solar panels（solar panel only）+12V/24V 20A solar charger controller+1 set 3 meters cable with PV connector +1 Set 3 meter cable with Alligator clip +1 set 2 in 1 adapter

300w solar system= 3pcs 100w 12v flexible solar panels +12V/24V 30A solar charger controller+1 set 3 meters cable with PV connector +1 Set 3 meter cable with Alligator clip +1 set 3 in 1 adapter


400w solar system= 4pcs 100w 12v flexible solar panels +12V/24V 40A solar charger controller+1 set 3 meters cable with PV connector +1 Set 3 meter cable with Alligator clip +1 set 4 in 1 adapter

Specification100W Solar panel

Maximum power(Pmax) 100W

Output tolerance 5%

Maximum system voltage 700V DC

Open circuit voltage(Voc) 19.2V

Short circuit current(Isc) 6.87A

Maximum power voltage(Vmp) 16V

Maximum power current(Imp) 6.25A

Cell efficiency 22%

Operating temperature（NOCT）45±2℃

Temperature range -20℃～+80℃

Number of cells 32pcs

Weight 1.9KG

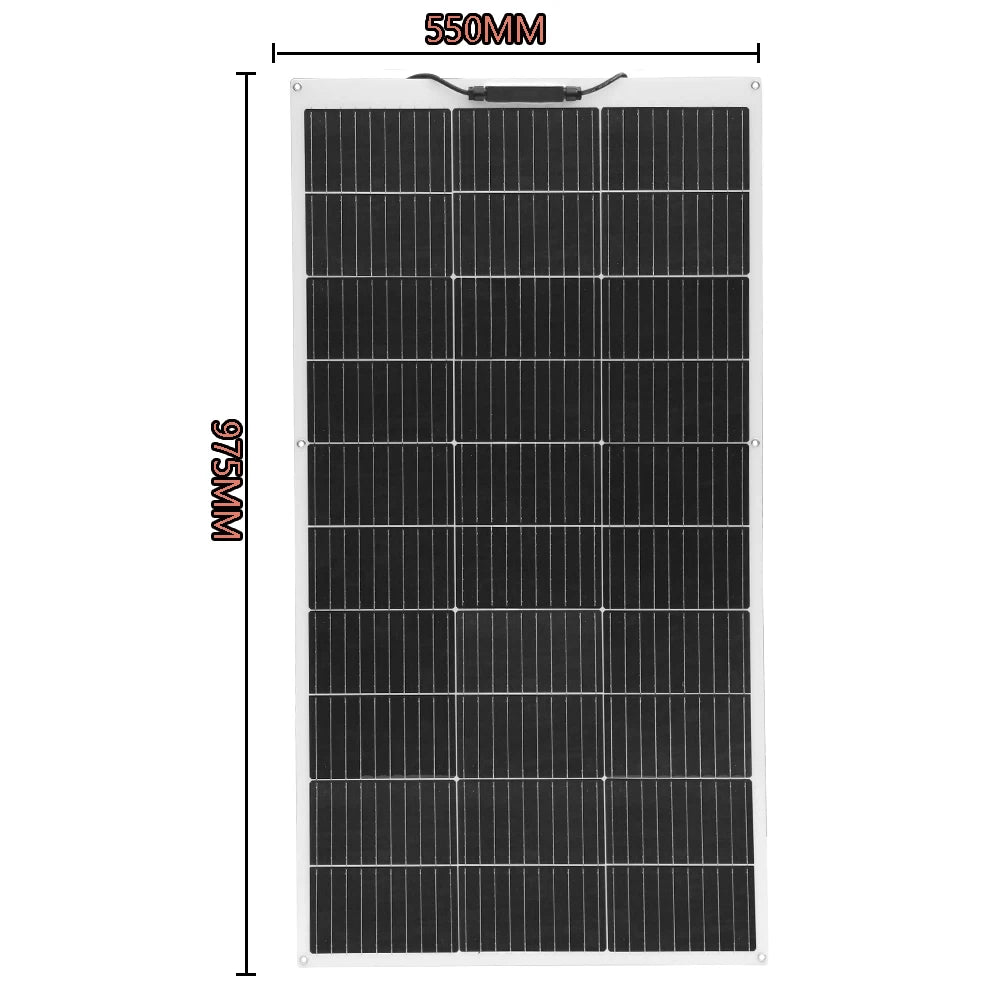

Size 1050*540*3mm

Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5

(The above data is based on the laboratory standard test environment)

For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:

AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃

(The size is manually measured and there is a certain error.）

Solar module products

a. This product must not be in contact with highly corrosive substances to avoid excessive bending and long-term bending;
b. The solar panel should be prevented from stacking and falling down, the solar flexible panel cannot be disassembled, do not collide with hard objects, avoid trampling, and avoid scratching the surface with hard objects during use;
c. A large number of scratches or dirt on the surface of the solar panel may result in low efficiency of the solar panel, which may seriously cause burnout;
d. The suitable ambient temperature range of solar panels: -20 ℃-80 ℃, do not exceed this range;
e. The solar panel must be installed in an area with good sunlight and no shadow. The solar panel may work in the shaded sunlight for a long time and there may be a risk of burnout;
f. When used in series connection, the "+" of the previous component is connected to the "-" of the next component. The same panel cannot be directly connected to the positive and negative poles.
